Steering Column Trim Cover Replacement

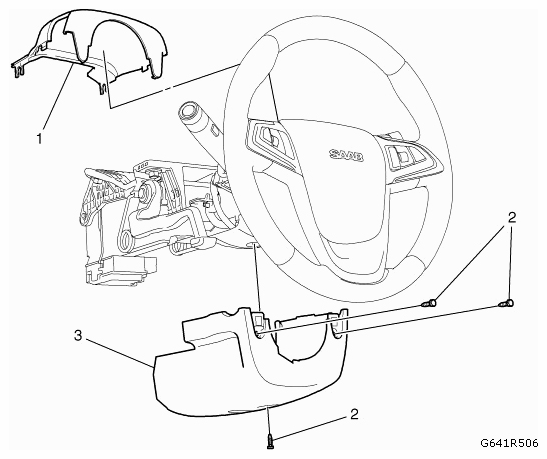

Fig 1: Identifying Instrument Panel Steering Column Lower/Upper Trim Cover And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Telescope the steering column to its most extended position.
1	Instrument Panel Steering Column Upper Trim Cover Procedure Turn the steering wheel for access.
2	Instrument Panel Steering Column Lower Trim Cover Fastener (Qty: 3) Refer to FASTENER CAUTION . Procedure Turn the steering wheel to access the upper fasteners,
3	Instrument Panel Steering Column Lower Trim Cover
