Turn Signal Multifunction Switch Replacement

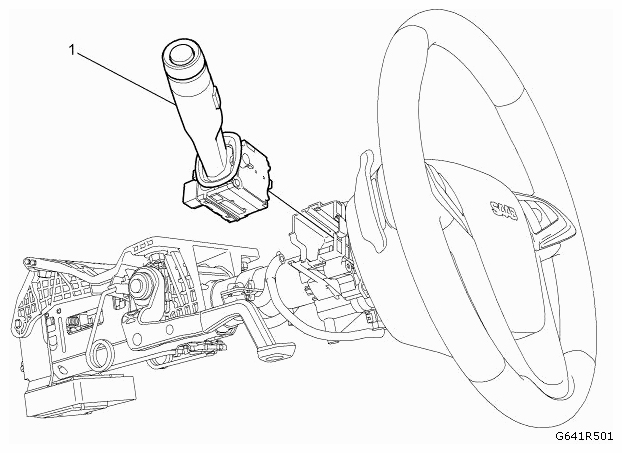

Fig 1: Identifying Turn Signal Multifunction Switch
G09437445Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVER REPLACEMENT .
1 Turn Signal Multifunction Switch
Procedure
  1. Disconnect any electrical connectors as needed.
  2. Depress the locking tabs to remove the turn signal multifunction switch.
