Column Lock (ULS): Notes

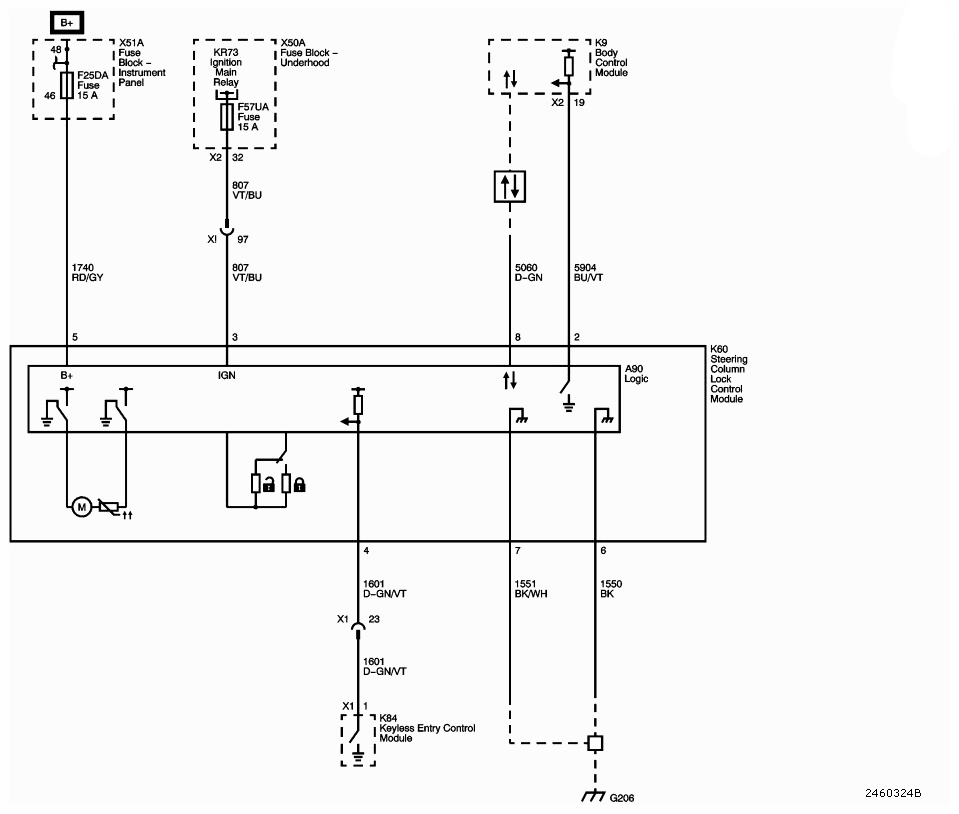

Fig 1: Column Lock - Wiring Diagram (ULS)

G09437448

Courtesy of SAAB-SCANIA OF AMERICA, INC.
