Grounding point G2, Z19: Notes

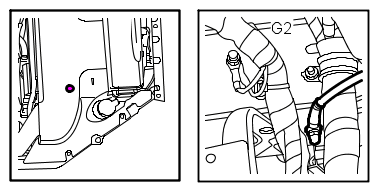

Fig 1: Identifying Grounding Point G2, Z19
G06231167Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the side of the LH structural member near the connector console
