Grounding point G25: Notes

Location:

B284 AUT:  On a bracket on the front of the gearbox

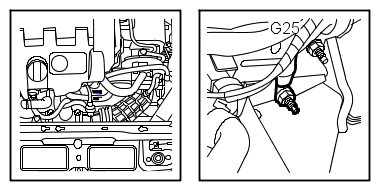

Fig 1: Identifying Grounding Point G25 - B284 AUT

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Other:  On left engine mounting

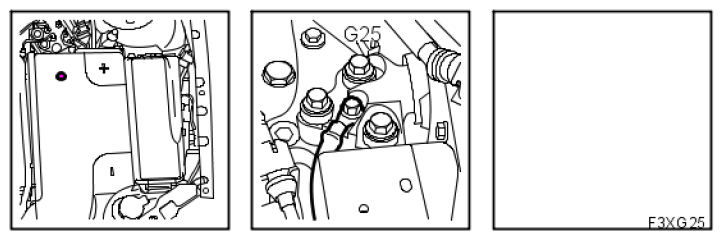

Fig 2: Identifying Grounding Point G25

Courtesy of SAAB-SCANIA OF AMERICA, INC.
