Battery, 60Ah

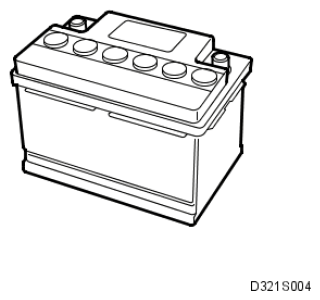

Fig 1: Identifying Battery, 60Ah

Courtesy of SAAB-SCANIA OF AMERICA, INC.

BATTERY REFERENCE CHART

Type designation		Exide 127 93 955
Voltage	V	12
Capacity	Ah	60
Grounding		Negative
Specific gravity of electrolyte:
When recharging advisable		1.21
When battery fully charged		1.28
Starting current:
EN (European Norm)	A	580
SAE	A	580
