Fuse 6, engine bay fuse box 342: Notes

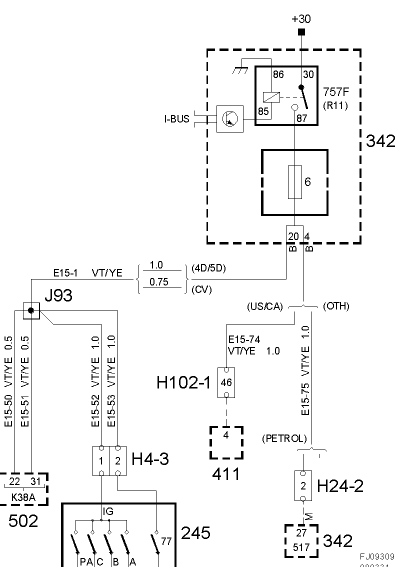

Fig 1: Fuse 6, Engine Bay Fuse Box 342 - Circuit Diagram
G05171434Courtesy of SAAB-SCANIA OF AMERICA, INC.
