Crimp J46, engine harness, Trionic: Notes

Location:  Approx. 130 mm from connector H24-2

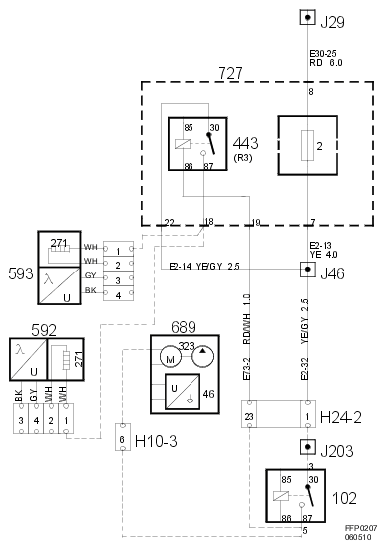

Fig 1: Crimp J46, Engine Harness, Trionic - Schematic
G06230121Courtesy of SAAB-SCANIA OF AMERICA, INC.
