Fuel tank

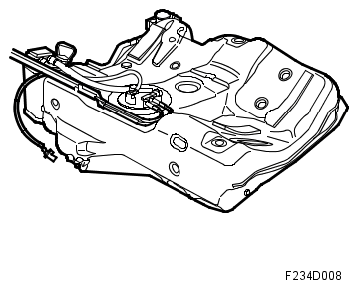

Fig 1: Identifying Fuel Tank
G06230146Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL TANK CAPACITY

Total capacity litres 58
ORVR (US/CA) litres 62
Fuel remaining when low fuel warning lamp comes on litres 10
