Injectors (206), T8

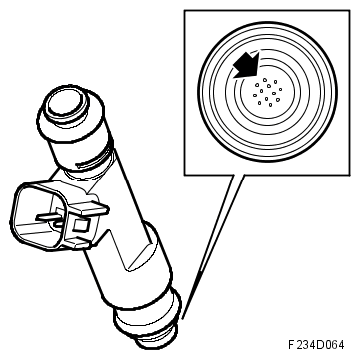

Fig 1: Identifying Injectors (206), T8
G06230092Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS REFERENCE CHART

Engine type B207E, B207L B207R
Type Siemens, colour blue Siemens, colour green
Style multiple hole multiple hole
Resistance Ohm 12 12
Flow capacity ml/30 s 134 ± 5 176 ± 7
Maximum permitted difference
between injectors
ml/30 s 10 14
