Connector H33-1

Location:  black connector on the console to the left of the ignition switch

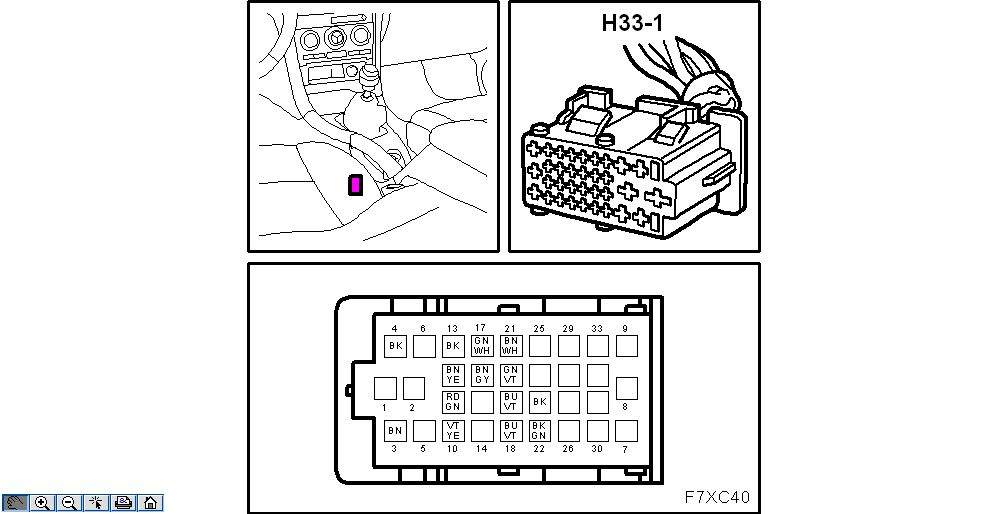

Fig 1: Identifying Connector H33-1
G05174226Courtesy of SAAB-SCANIA OF AMERICA, INC.
