Control module, Trionic, B207, switch A (589A)
Location:
in front on the engine

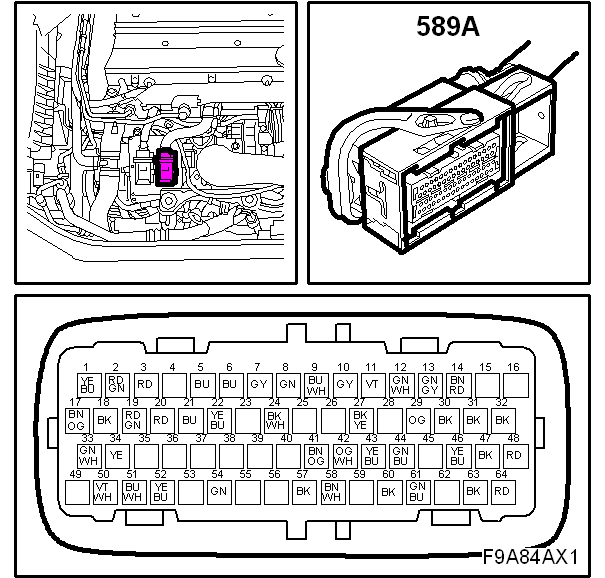

Fig 1: Identifying Control Module, Trionic, B207, Switch A (589A)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
