Control module, Trionic, B207, switch B (589B)
Location:
in front on the engine

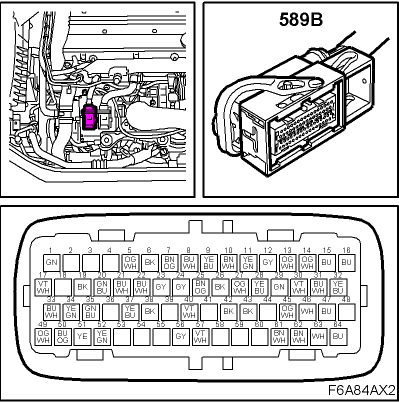

Fig 1: Identifying Control Module, Trionic, B207, Switch B (589B)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
