Crimp J32, engine harness, Trionic: Notes

Location:  Approx. 70 mm from branching of engine control module switch B towards its switch A

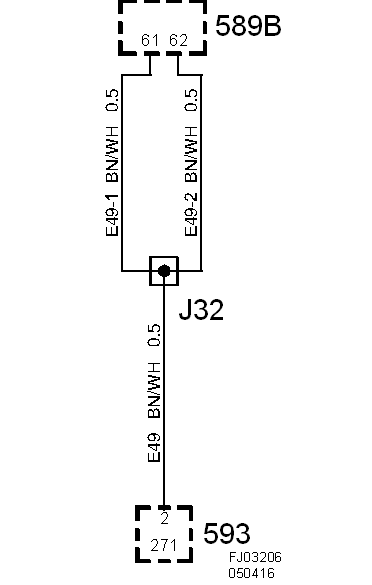

Fig 1: Crimp J32, Engine Harness, Trionic - Circuit Diagram
G06230733Courtesy of SAAB-SCANIA OF AMERICA, INC.
