Crimp J39, engine harness, Trionic

Location:  Approx. 60 mm from the branching point to the ignition coil with integrated amplifier, cyl.4, towards the combustion sensor

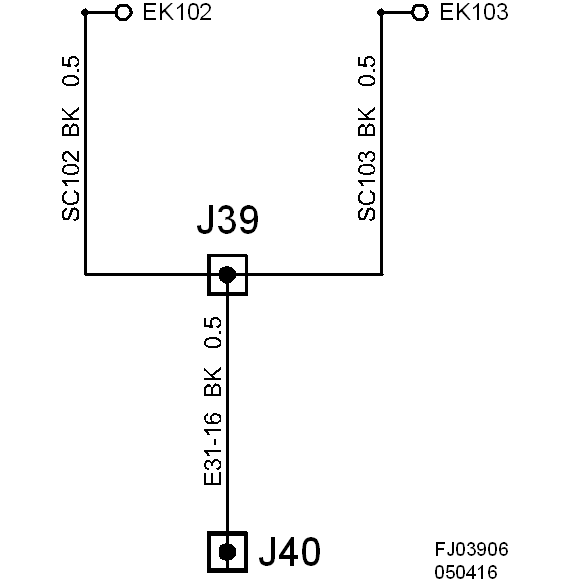

Fig 1: Crimp J39, Engine Harness, Trionic - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
