Crimp J44, engine harness, Trionic

Location:  Approx. 80 mm from the branching point to the ignition coil with integrated amplifier, cyl.4, towards the combustion sensor

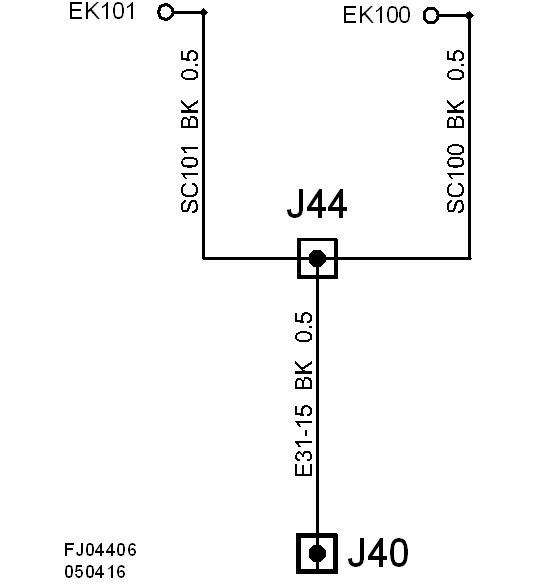

Fig 1: Crimp J44, Engine Harness, Trionic - Circuit Diagram
G06230743Courtesy of SAAB-SCANIA OF AMERICA, INC.
