Crimp J48, engine harness, Trionic: Notes

Location:  Approx. 80 mm from branching point ignition coil with integrated power amplifier for cylinder 4 towards the engine control module

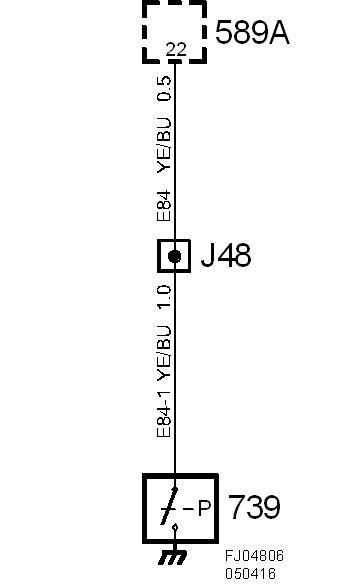

Fig 1: Crimp J48, Engine Harness, Trionic - Circuit Diagram
G06230745Courtesy of SAAB-SCANIA OF AMERICA, INC.
