Crimp J95, main harness: Notes

Location:

4D/5D:  Approx. 60 mm from branching point front left door towards engine bay

CV:  Approx. 30 mm from branching point left front door to engine bay

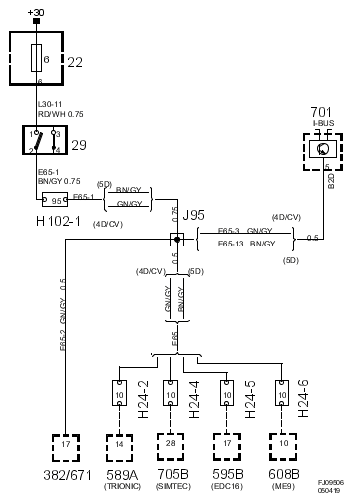

Fig 1: Crimp J95, Main Harness - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
