Fuel level sensor (46)

Location:

integrated in the fuel pump unit 689

Petrol, market US/CA and 4WD

4WD: The fuel pump unit is located on the right-hand side of the fuel tank

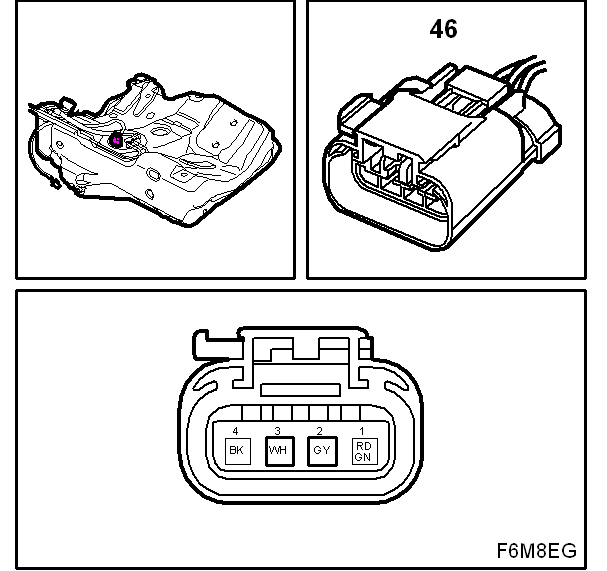

Fig 1: Identifying Fuel Level Sensor (46) - Petrol, Market US/CA And 4WD

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Petrol, other markets

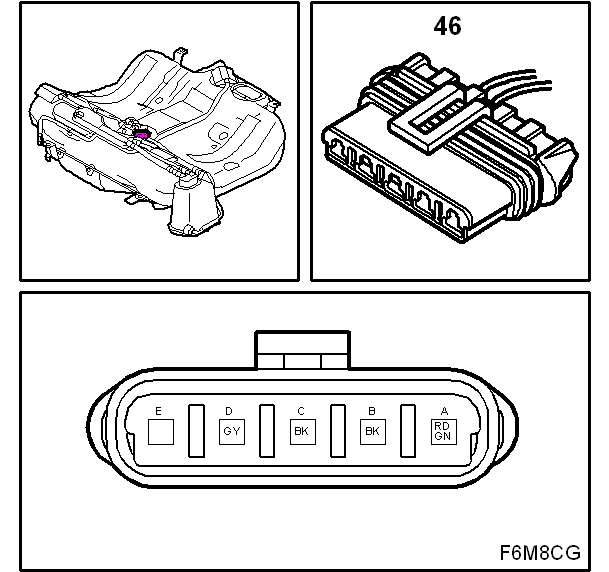

Fig 2: Identifying Fuel Level Sensor (46) - Petrol, Other Markets

Courtesy of SAAB-SCANIA OF AMERICA, INC.
