Fuel pump module (689)
Location:
in the fuel tank
Petrol, US/CA market

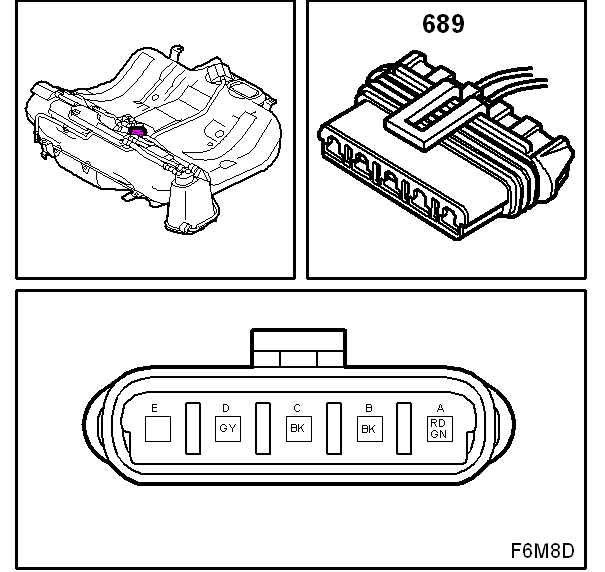

Fig 1: Identifying Fuel Pump Module (689) - Petrol, US/CA Market
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Petrol, other markets

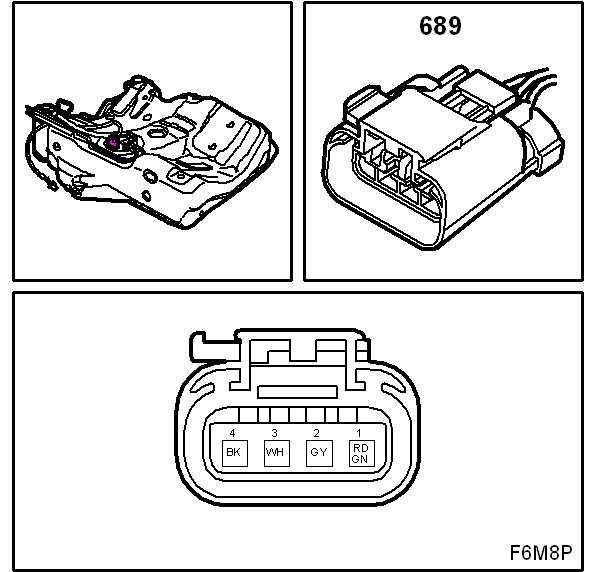

Fig 2: Identifying Fuel Pump Module (689) - Petrol, Other Markets
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
