Heated oxygen sensor element (271)

Location:  integrated in the oxygen sensor

B207

front heated oxygen sensor

rear heated oxygen sensor

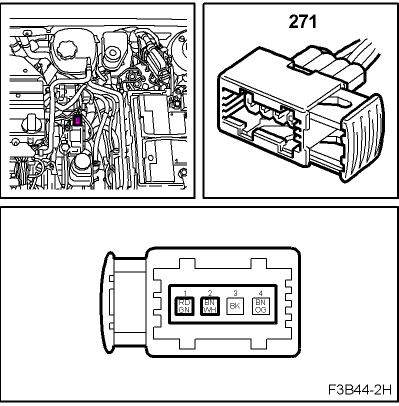

Fig 1: Identifying Heated Oxygen Sensor Element (271) - B207
G05052689Courtesy of SAAB-SCANIA OF AMERICA, INC.
