Ignition Switch Module (20)

Location:  in the floor console between the front seats

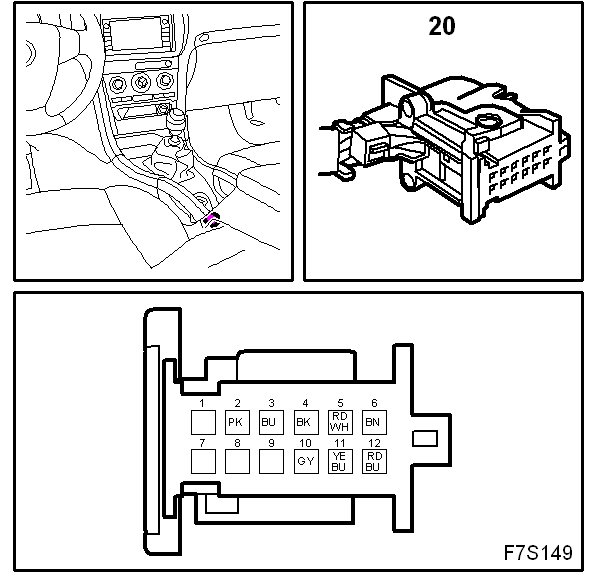

Fig 1: Identifying Ignition Switch Module (20)
G05174118Courtesy of SAAB-SCANIA OF AMERICA, INC.
