Pressure sensor A/C (620)

Location:  near the left front corner of the air filter

B207

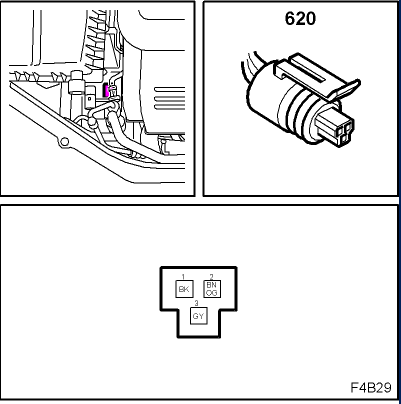

Fig 1: Identifying Pressure Sensor A/C (620) - B207
G05052765Courtesy of SAAB-SCANIA OF AMERICA, INC.
