To remove

  1. Remove the acoustic baffle on the driver's side. See SOUND INSULATION PANEL, DRIVER .

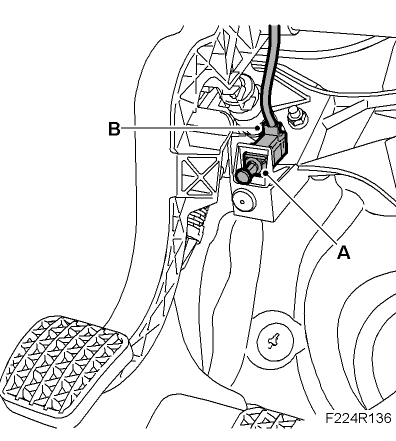

    Fig 1: Removing/Installing Immobilizer Switch Coupling
    G00539155Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Pull out the contact's push rod and locking sleeve.
  3. Compress the lock tabs and remove the contact (A).
  4. Unplug the connector (B)
