To remove

Carry out PROCEDURES BEFORE DISMANTLING THE CONTROL MODULE .

1. Ignition key in LOCK position.
2. Remove the upper engine cover.

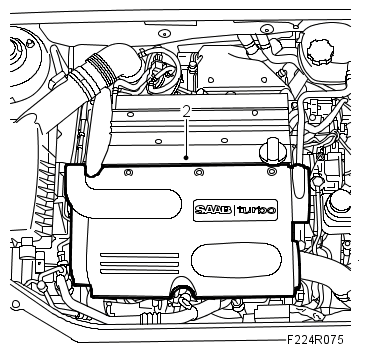

   Fig 1: Identifying Upper Engine Cover

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Carefully press down the catches and carefully unplug the connectors from the control module one at a time so that the connection pins, etc. are not damaged.

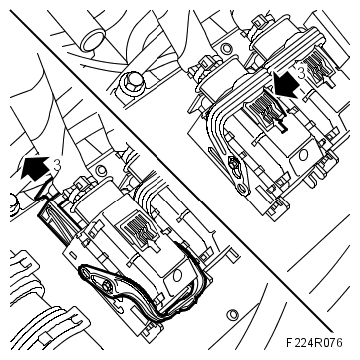

   Fig 2: Disconnecting Control Module Connectors

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Remove the control module.

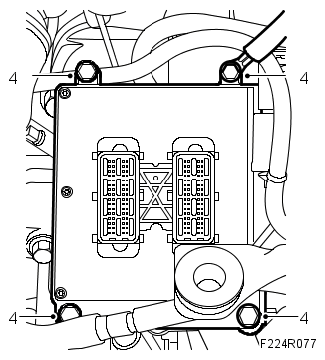

   Fig 3: Identifying Control Module And Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
