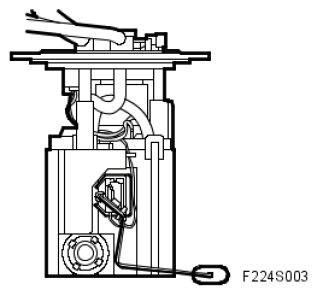

Fuel level sensor (46), T8
Courtesy of SAAB-SCANIA OF AMERICA, INC. FUEL LEVEL SENSOR SPECIFICATION CHART
| litres |
Ohm |
| 1.0 |
249.2 |
| 8.0 |
220.6 |
| 16.0 |
178.1 |
| 24.0 |
150.4 |
| 30.0 |
126.3 |
| 40.0 |
98.1 |
| 48.0 |
70.6 |
| 56.0 |
42.3 |
| 58.0 |
40.5 |
TANK LEVEL RESISTANCE CHART
| Tank |
Empty Ω |
Full Ω |
| BioPower |
236 |
32 |
