Intake air sensor (688), T8: Notes

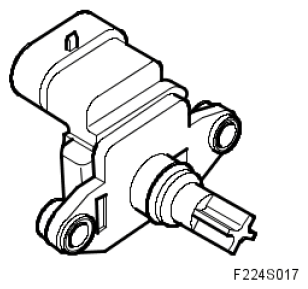

Fig 1: Identifying Intake Air Sensor (688), T8
G05052602Courtesy of SAAB-SCANIA OF AMERICA, INC.

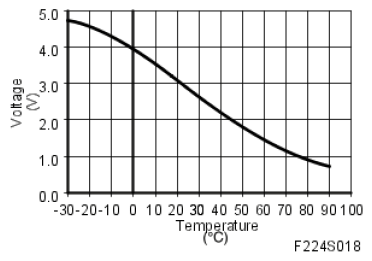

Fig 2: Voltage And Temperature Graph (1 Of 2)
G05052849Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 3: Voltage And Temperature Graph (2 Of 2)
G05052837Courtesy of SAAB-SCANIA OF AMERICA, INC.
