Connector H4-3
Location:
under the TCM control module

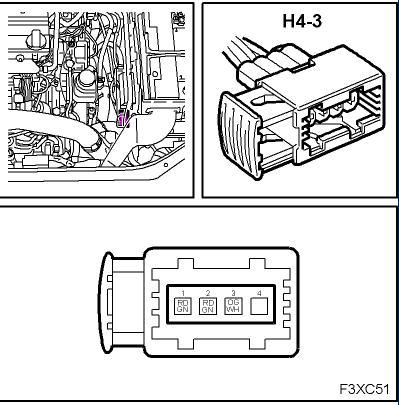

Fig 1: Identifying Connector H4-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
