Crimp J78, dashboard harness: Notes

Location:

LHD:  Approximately 210 mm from branching of the cigarette lighter towards the airbag control module

RHD:  Approximately 110 mm from grounding point G41 branching point towards connector H33-1

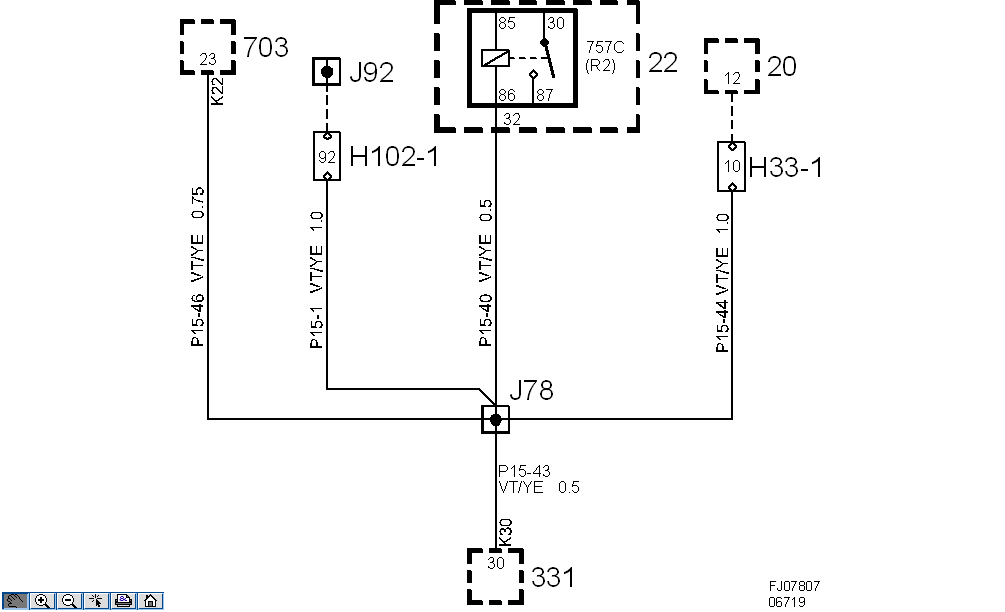

Fig 1: Crimp J78, Dashboard Harness - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
