Main relay, engine control system (229)

Location:

T8

in the main fuse box in front of battery

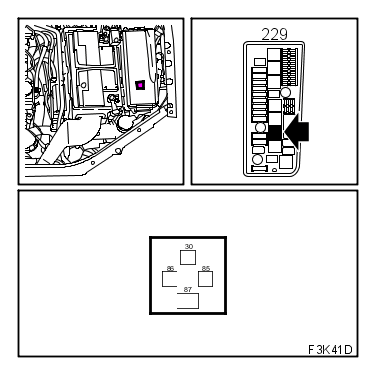

Fig 1: Identifying Engine Control System (229) Main Relay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Simtec

in engine bay electrical centre 342

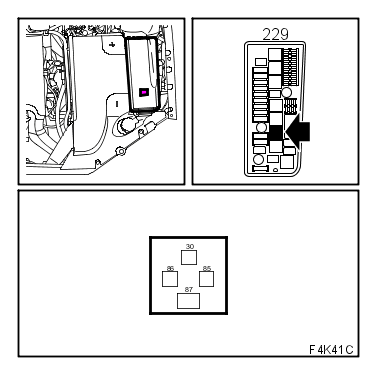

Fig 2: Identifying Simtec

Courtesy of SAAB-SCANIA OF AMERICA, INC.

EDC16

in engine bay electrical centre 342

Fig 3: Identifying EDC16

Courtesy of SAAB-SCANIA OF AMERICA, INC.
