To remove
- Remove the fuel tank. See FUEL TANK, TO REMOVE .
- To prevent dirt entering the fuel system, clean the outside of the tank if necessary before removing the fuel pump.

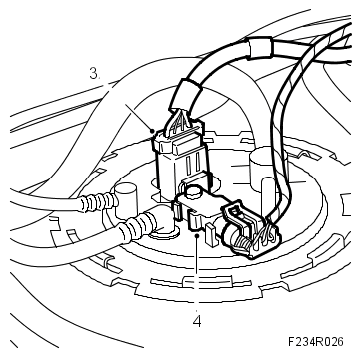

- Unplug the fuel pump connector.
- On cars with ORVR, unplug the connector for the pressure sensor.

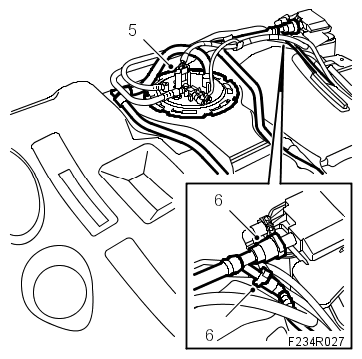

- Remove the fuel pump. Use tool 83 96 194 FITTING TOOL , fuel armature to undo the fuel pump lock ring.
- Disconnect the quick-release couplings on the EVAP emission canister.

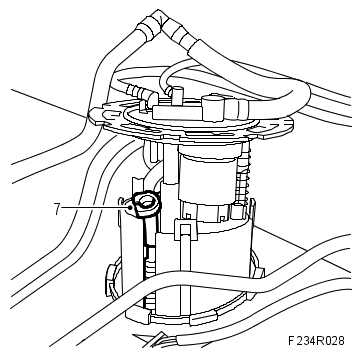

- Lift up the fuel pump slightly and disconnect the quick-release coupling for the tank ventilation from the fuel pump.
- Carefully lift up the fuel pump and place it in a receptacle.IMPORTANT: Take care not to damage the fuel level sensor.
