Crimp J84, dashboard harness: Notes

Location:

LHD:  Approx. 270 mm from branching of light switch unit to column integration module

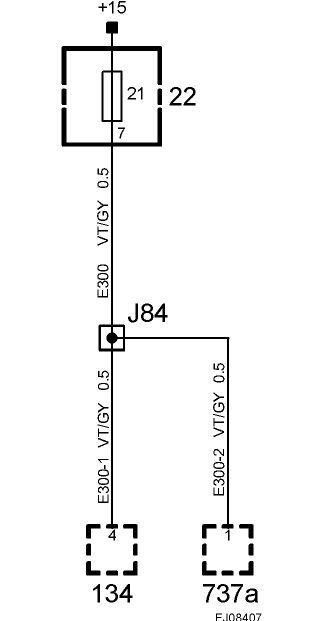

Fig 1: Crimp J84, Dashboard Harness - Circuit Diagram
G06230727Courtesy of SAAB-SCANIA OF AMERICA, INC.
