Heated oxygen sensor relay (443)
Location:
in the main fuse box in front of battery

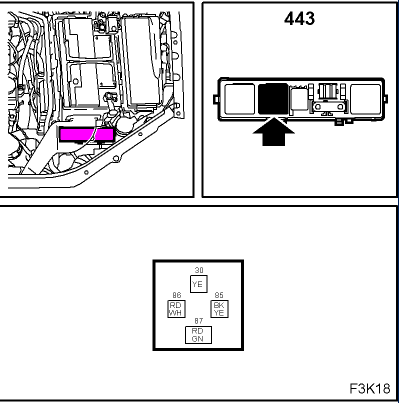

Fig 1: Identifying Heated Oxygen Sensor Relay (443)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
