To remove

  1. Remove the electrical connection from the sensor.

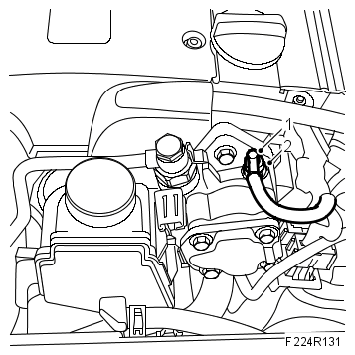

    Fig 1: Illustration For Steps 1-2
    G06230289Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Carefully remove the pressure sensor as it contains loose parts.
