To fit

Fit the control module. Do not forget the ground cable.

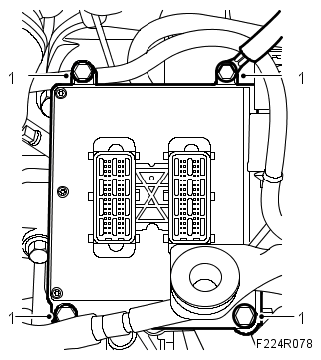

Fig 1: Identifying Control Module And Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 10 Nm (7 lbf ft)

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
Plug in the connectors and check that they are locked.

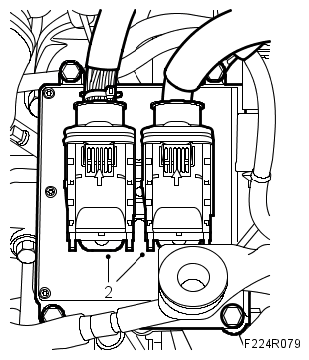

Fig 2: Identifying Plug Connectors
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the upper engine cover.

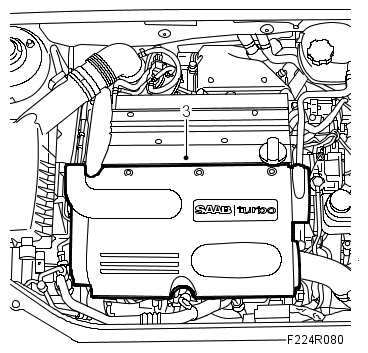

Fig 3: Identifying Upper Engine Cover
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Carry out MEASURES AFTER CHANGING THE CONTROL MODULE .
