Fuel pressure regulator

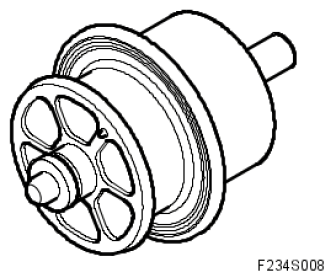

Fig 1: Identifying Fuel Pressure Regulator
G05170506Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE SPECIFICATION CHART

Fuel pressure bar 3, 0 ± 0, 1
Pressure, air side Connected to intake manifold
