Relay, A/C compressor (156)

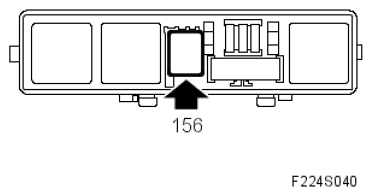

Fig 1: Identifying Relay, A/C Compressor (156)
G05052824Courtesy of SAAB-SCANIA OF AMERICA, INC.
RELAY, A/C COMPRESSOR RESISTANCE CHART

Resistance, winding at 20°C (68°F) Ohm 85 ± 5
Nominal control voltage V 12
Nominal current A 30
