Main components

  1. Front seat-belt with belt tensioner (236D, 236P)

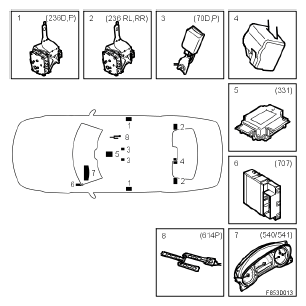

    Fig 1: Identifying Front Seat-Belt Main Components
    G05175052Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
  3. Front seat-belt buckle sensor (70D, 70P)
  4. Rear seat-belt buckle
  5. Airbag control module (331)
  6. Control module, BCM (707)
  7. Main instrument unit, MIU (540)/SID (541)
  8. Sensor, loaded seat cushion, front passenger seat (614P)
