Component Locations

For power mirror electrical component locations, see Fig 1 .

NOTE: Underhood junction block is located in the engine compartment, near the battery.

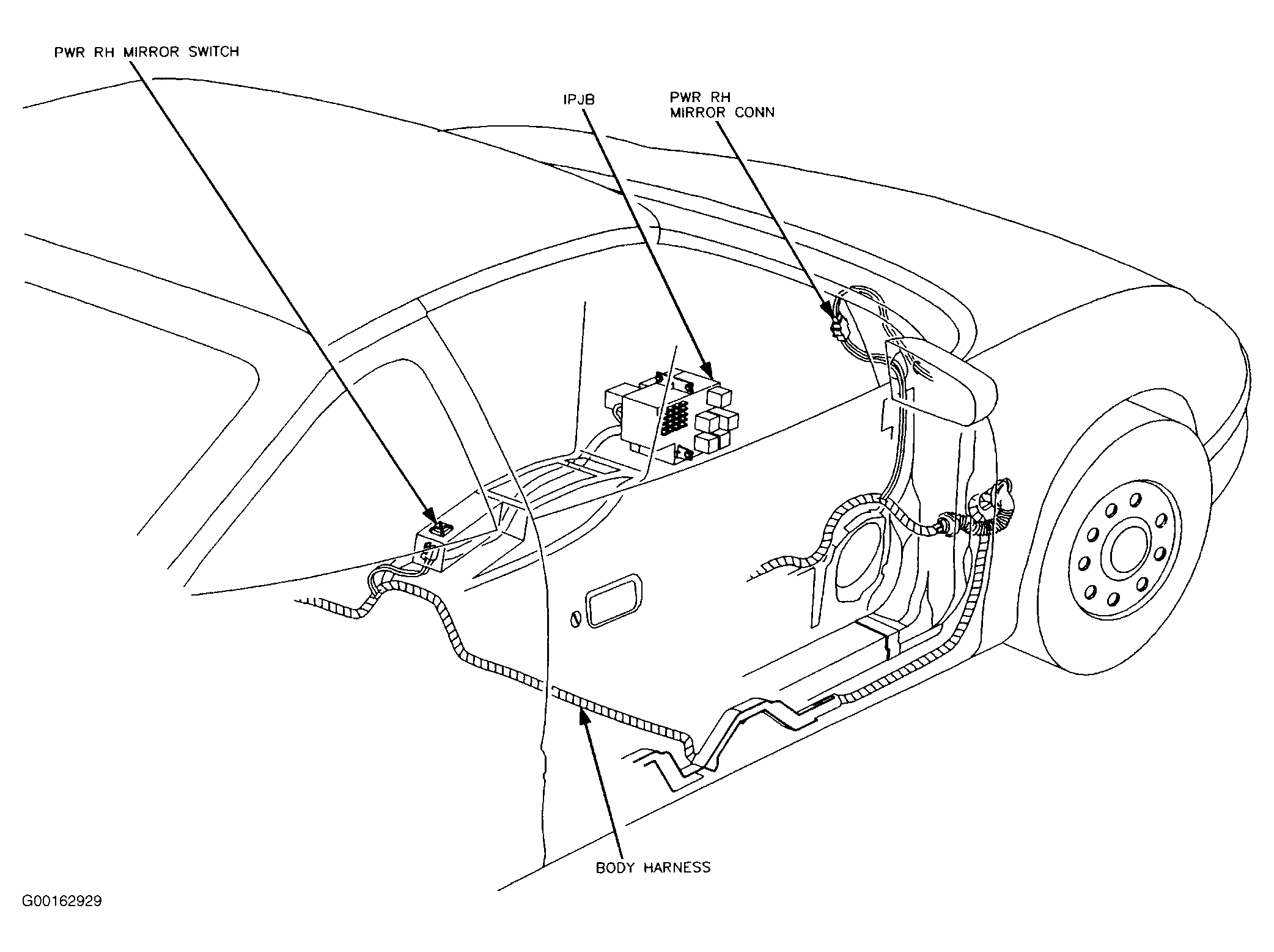

Fig 1: Power Mirror System Component Location

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Passenger Compartment Fuse/Relay Block
