Code 26: Quad-Driver CKT
>>
Component Resistances:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Resistances:
EGR Solenoid; 20-50 ohms.
Canister Purge Solenoid; 20-50 ohms.
Coolant Fan Relay; 72-88 ohms.
A/C Relay; 72-88 ohms.
Fig 1: Code 26, Schematic, Quad-Driver Ckt

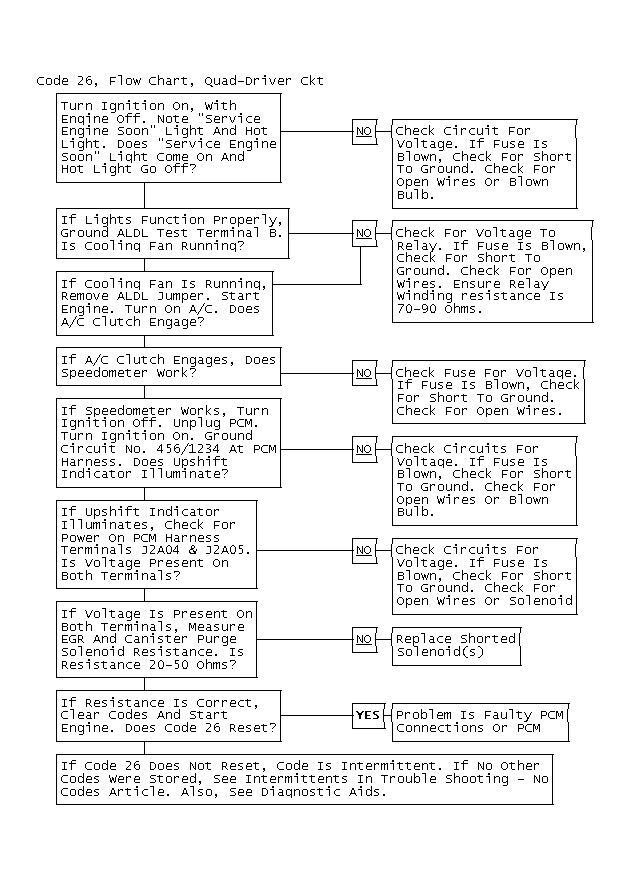

Fig 2: Code 26, Flow Chart, Quad-Driver Ckt
