Diagnostic Aids

  1. Suspected intermittents or opens at connectors can be detected with diagnostic service probe which permits voltage to be measured on wires without unplugging connectors. Ensure all terminals make good connection.
  2. When diagnosing intermittent problems, select MALF HISTORY from Tech 1 scan tester ABS menu. Supplemental data can be used to duplicate problem.
  3. Brake switch is normally held open by brake pedal. Pressing brake allows switch to close.
Fig 1: Code 92 - Schematic
G92C05433Courtesy of GENERAL MOTORS CORP.

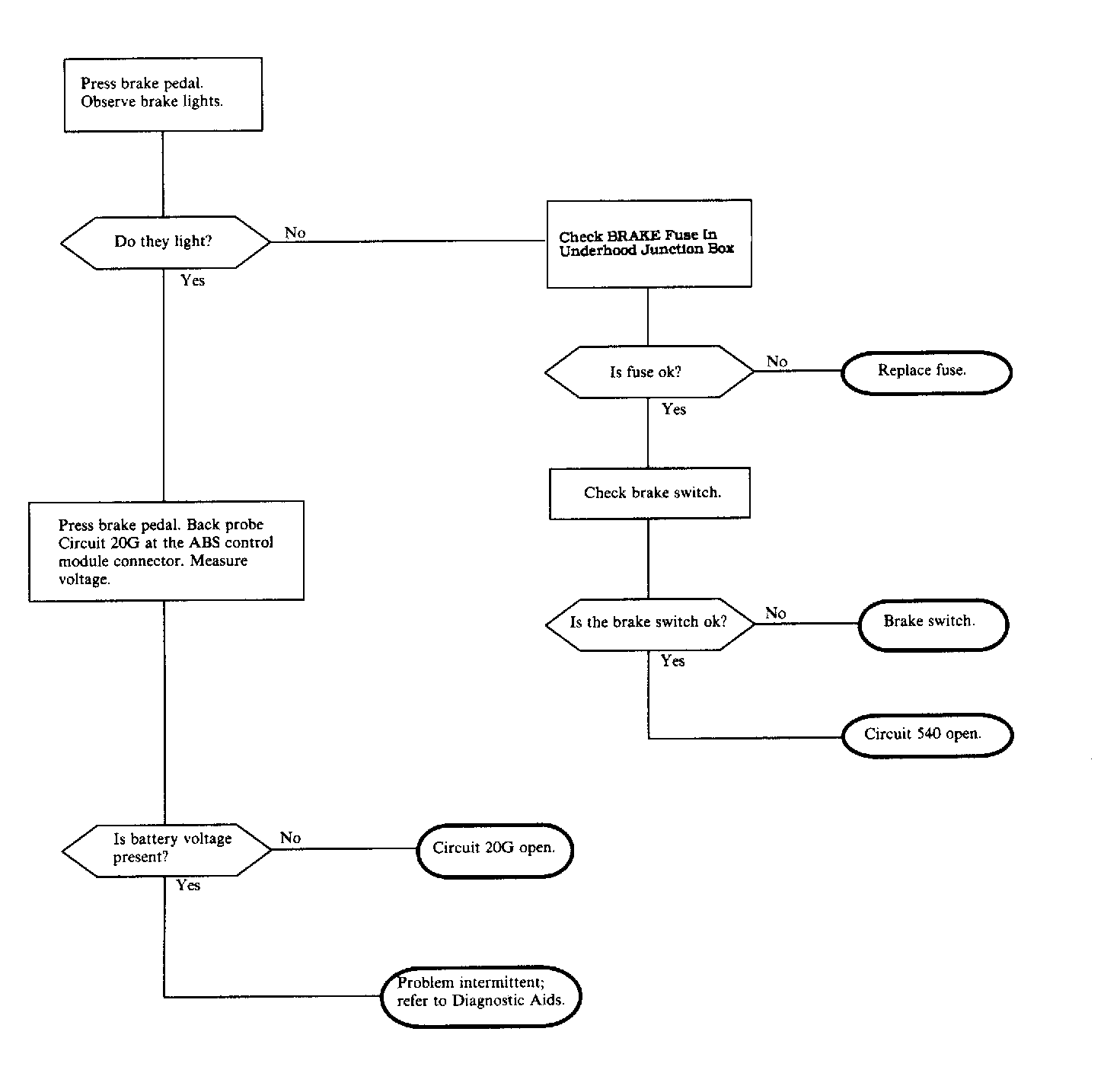

Fig 2: Code 92 - Diagnostic Flowchart
G92H05435Courtesy of GENERAL MOTORS CORP.
