Wiring Diagrams

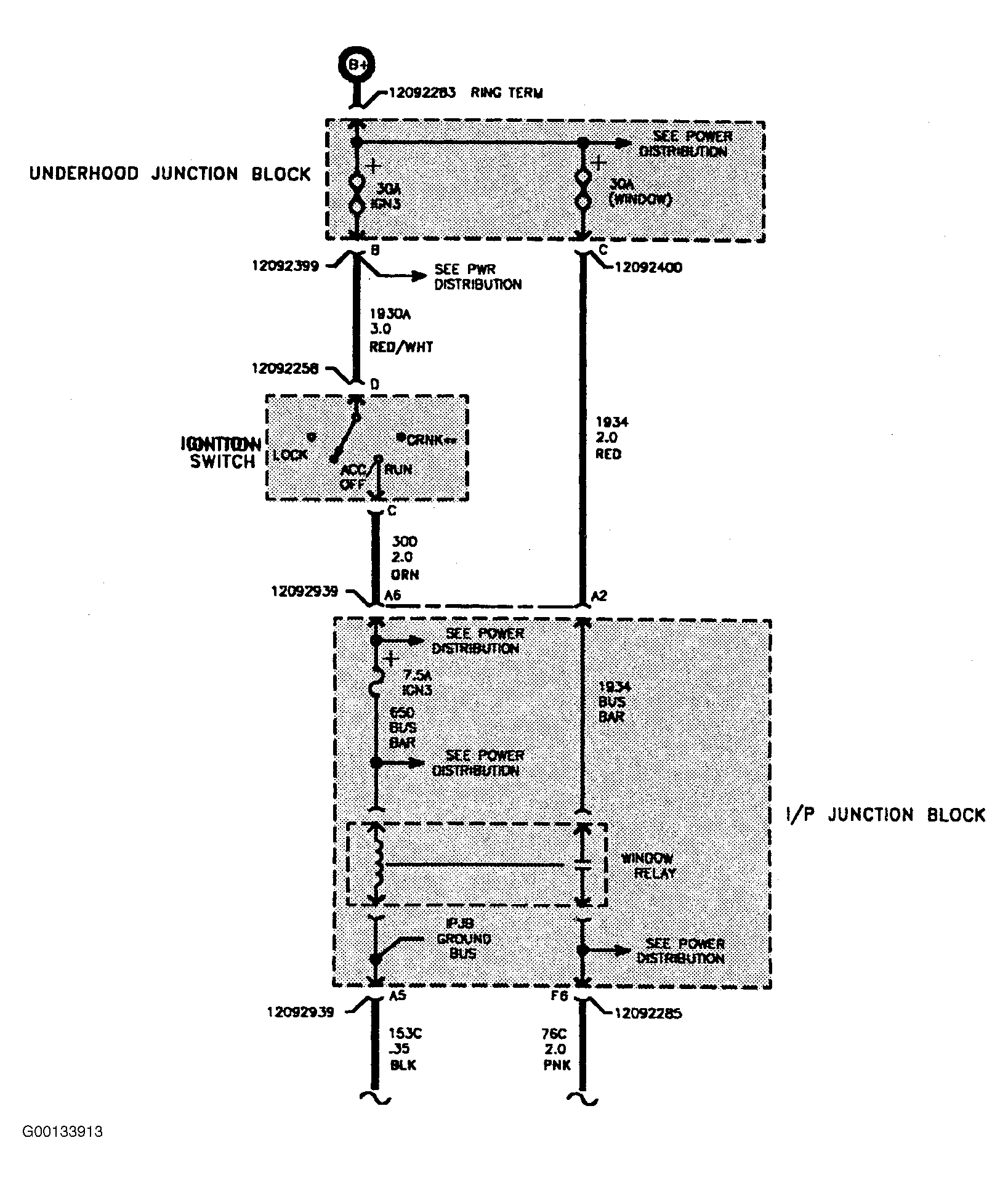

Fig 1: Power Window Wiring Diagram (1991-93 Coupe - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

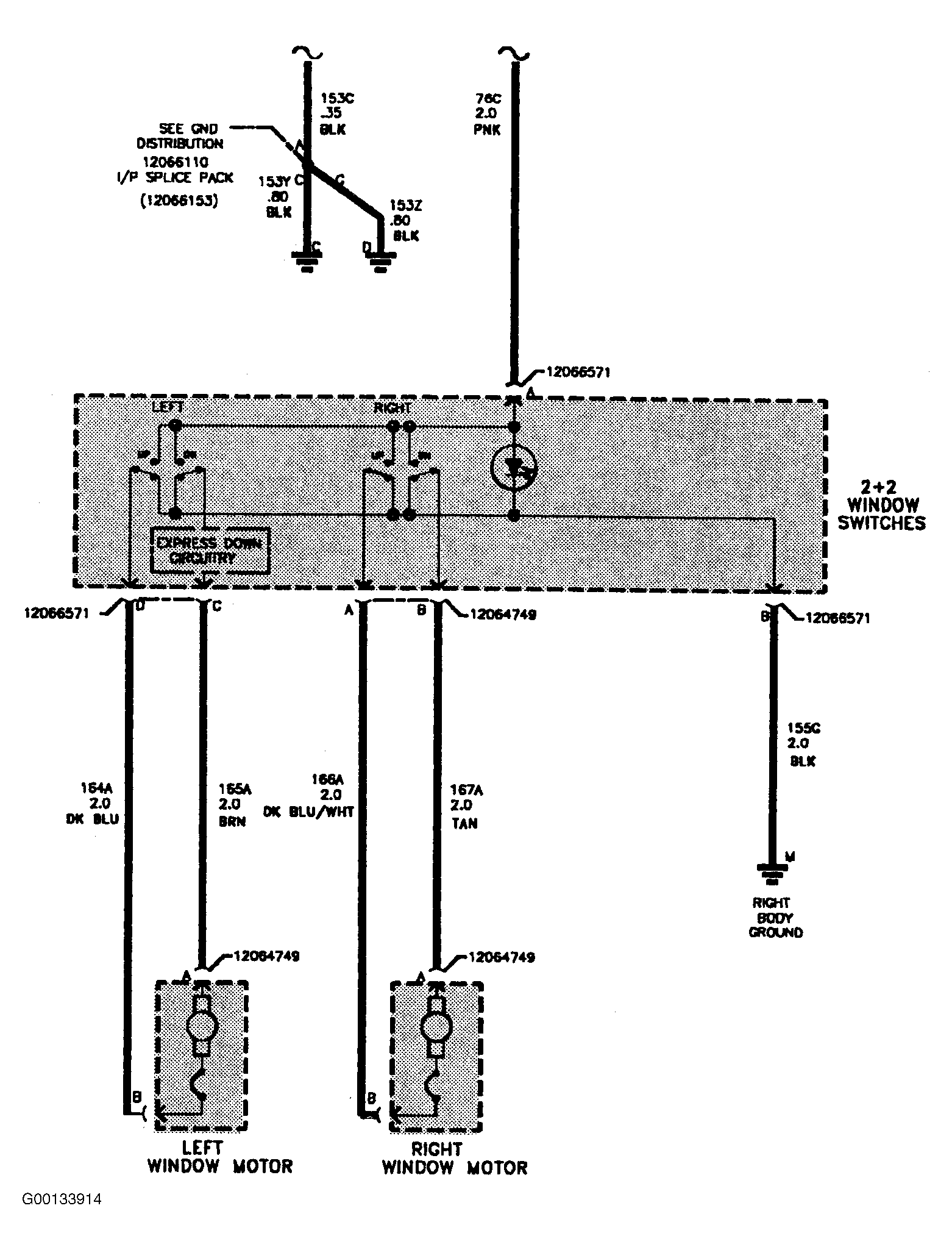

Fig 2: Power Window Wiring Diagram (1991-93 Coupe - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

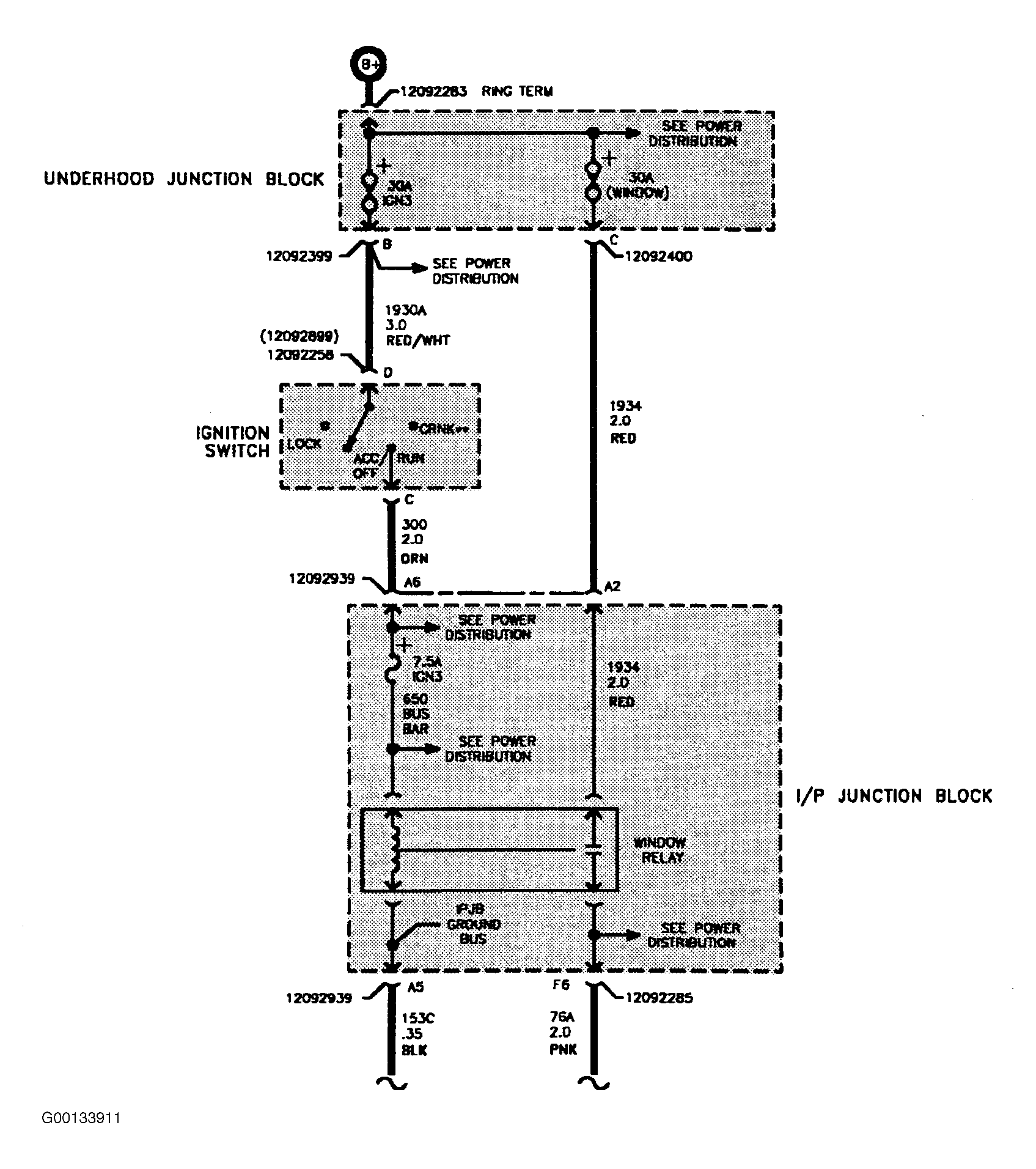

Fig 3: Power Window Wiring Diagram (1991-93 Sedan & Wagon- 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

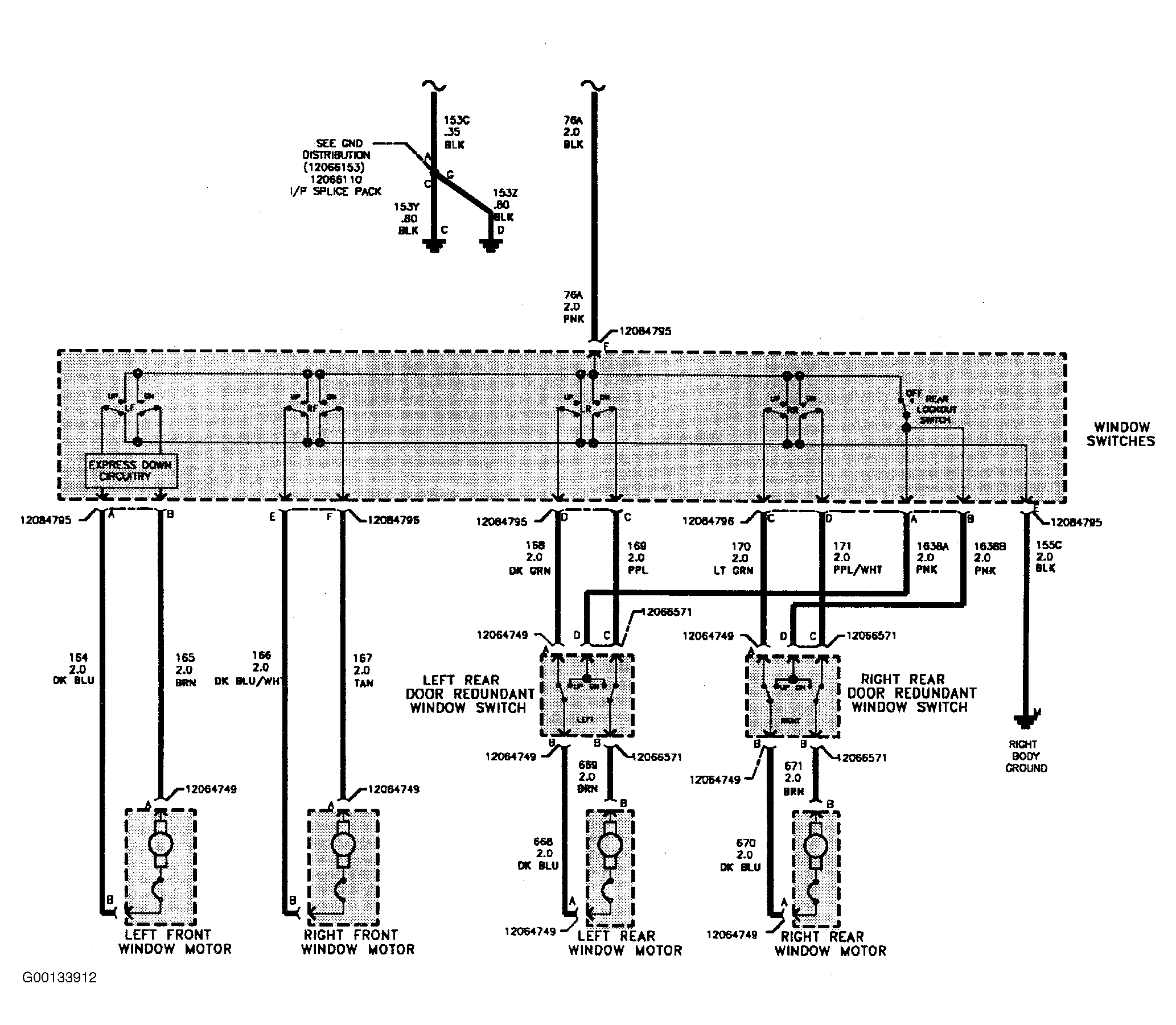

Fig 4: Power Window Wiring Diagram (1991-93 Sedan & Wagon- 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
