Component Locations

For component locations, see Fig 1 -Fig 3 .

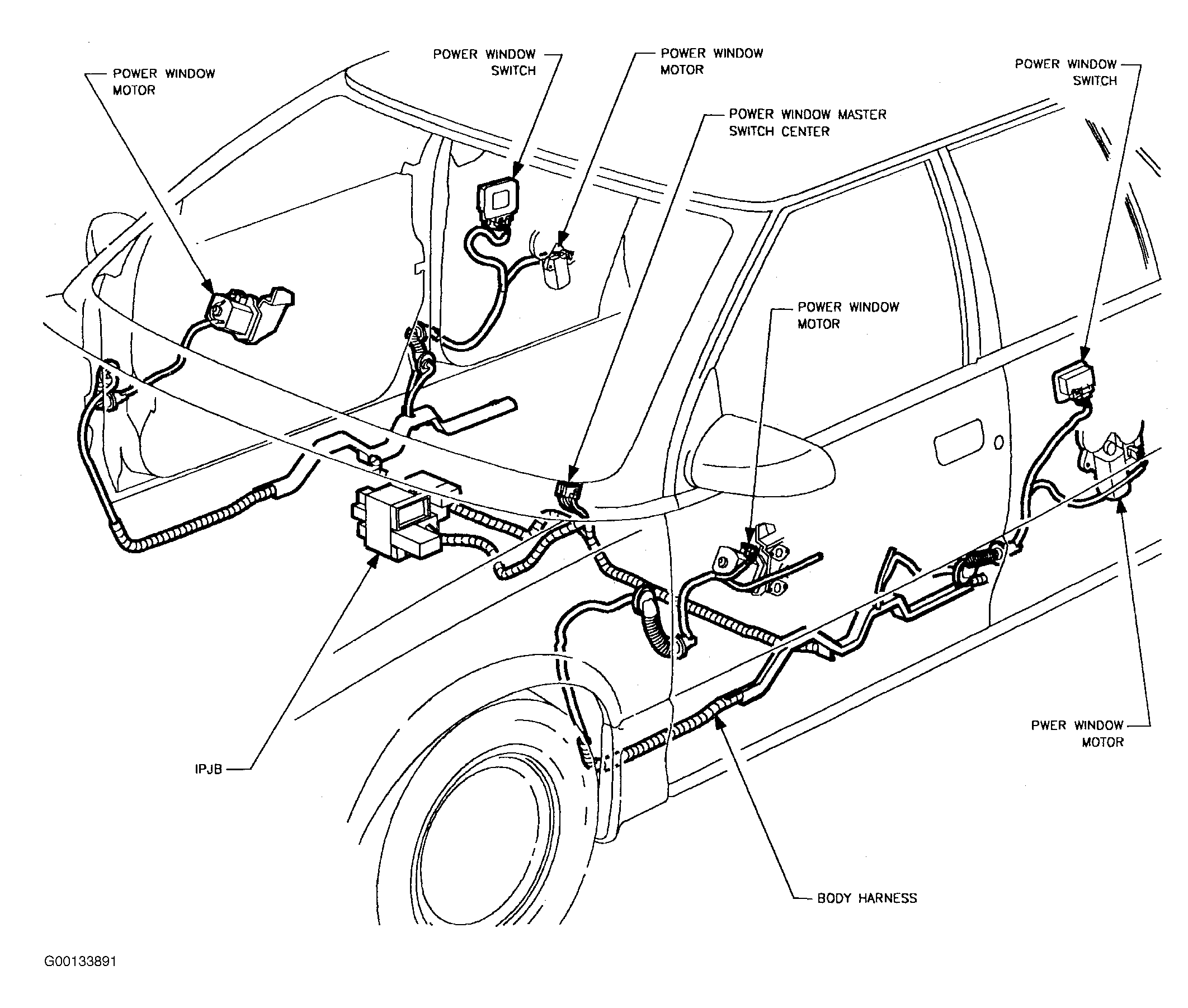

Fig 1: Power Window Electrical Components
G00133891Courtesy of GENERAL MOTORS CORP.

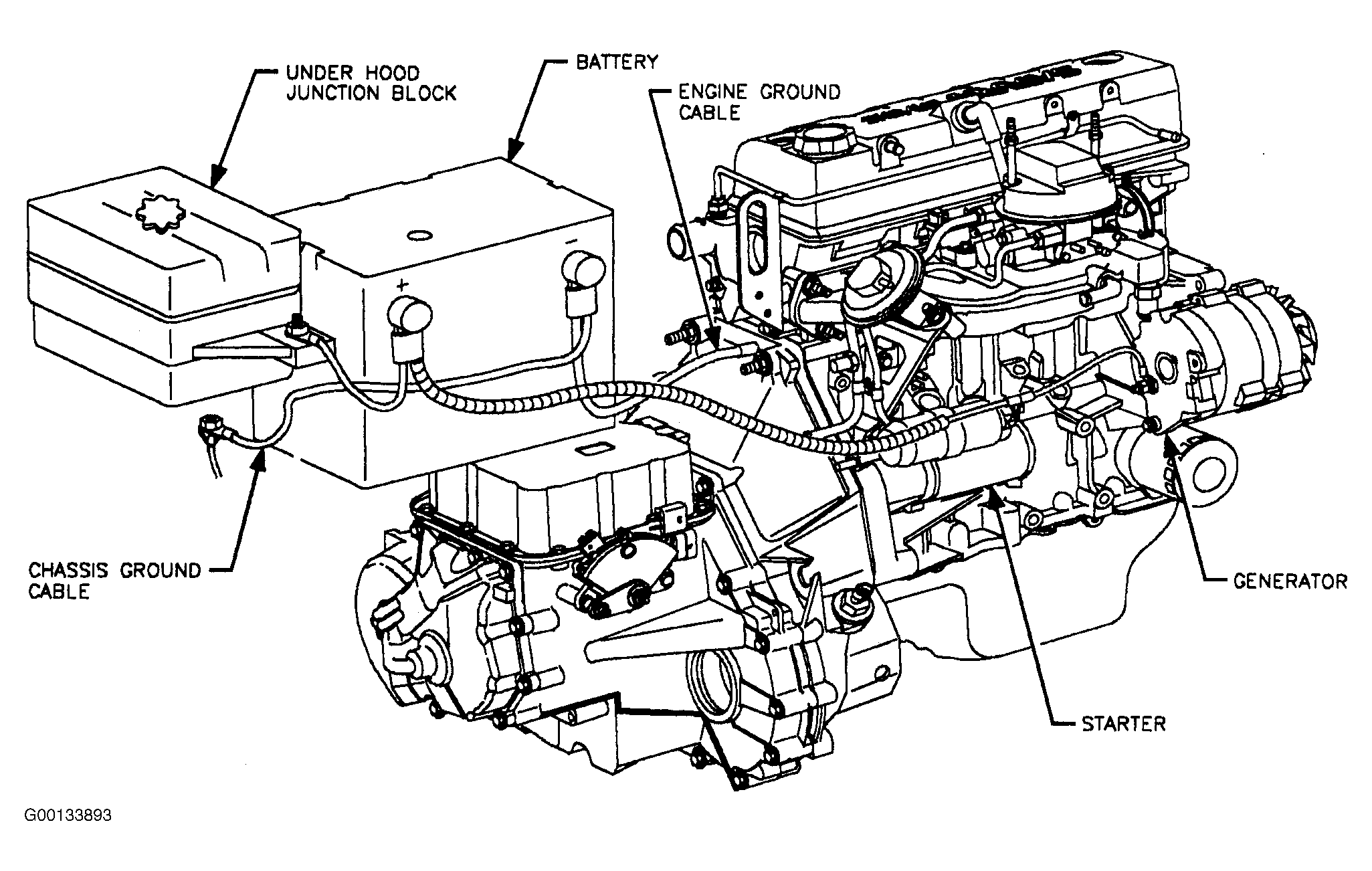

Fig 2: Locating Underhood Junction Block
G00133893Courtesy of GENERAL MOTORS CORP.

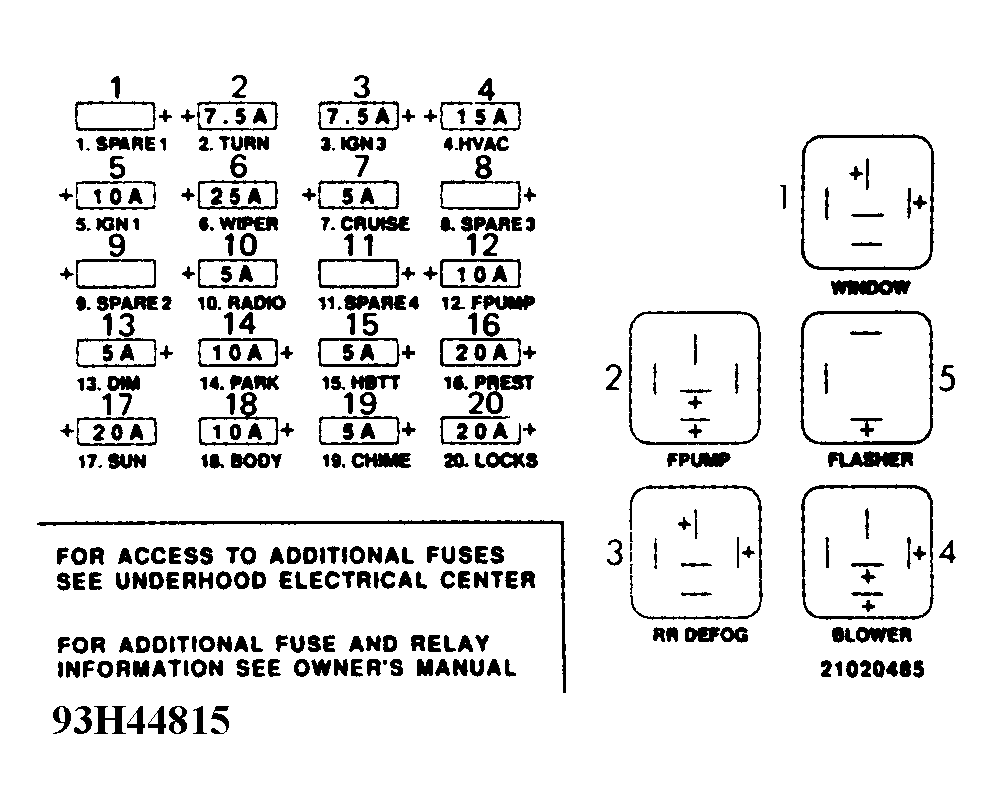

Fig 3: Instrument Panel Fuse Block Identification
G93H44815Courtesy of GENERAL MOTORS CORP.
