Diagnostic Aids

PCM will hold EST low if RPM reference is not received from ignition module. If Code 41 is set with Code 42, use CODES 41 & 42 SIMULTANEOUS chart.

Fig 1: Code 41, Schematic, EST Circuit Open Or Shorted

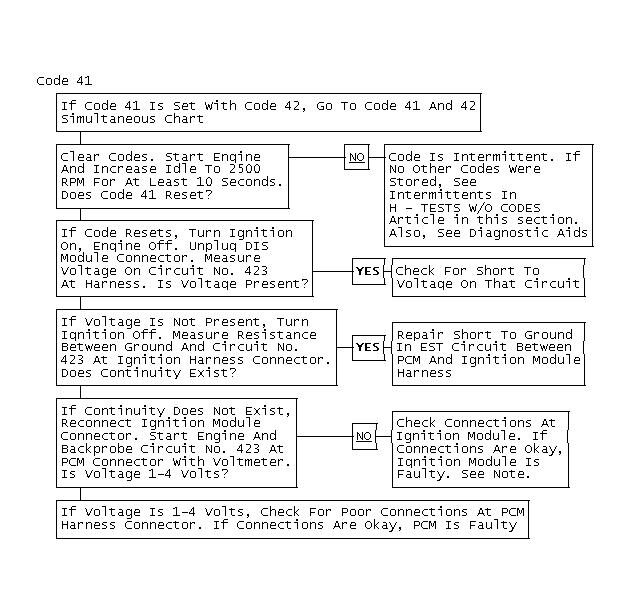

Fig 2: Code 41, Flow Chart, EST Circuit Open Or Shorted

Fig 3: Code 41
