Diagnostic Aids

Check tightness of female terminal grip with a spare male terminal. When Code 81 is set, traction control system will be disabled.

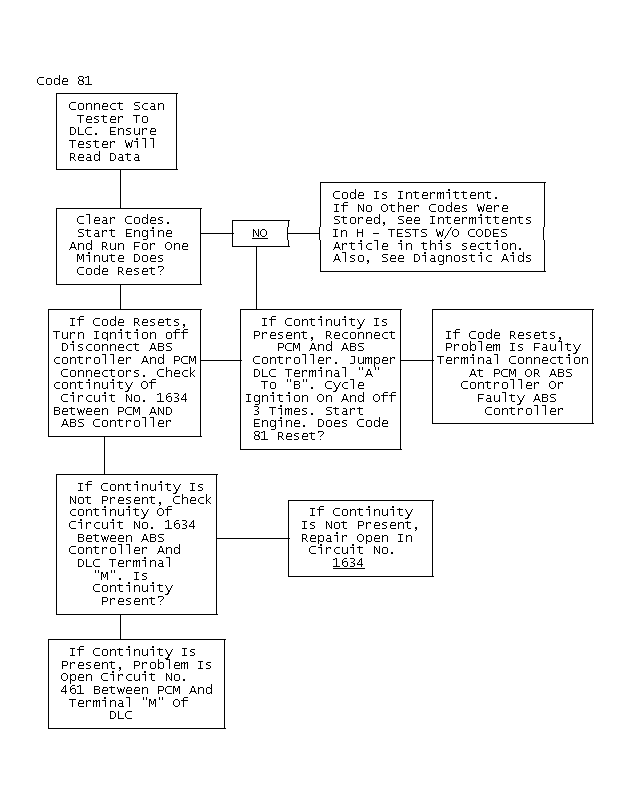

Fig 1: Code 81, ABS Message Fault

Fig 2: Code 81, ABS Message Fault

Fig 3: Code 81
