Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

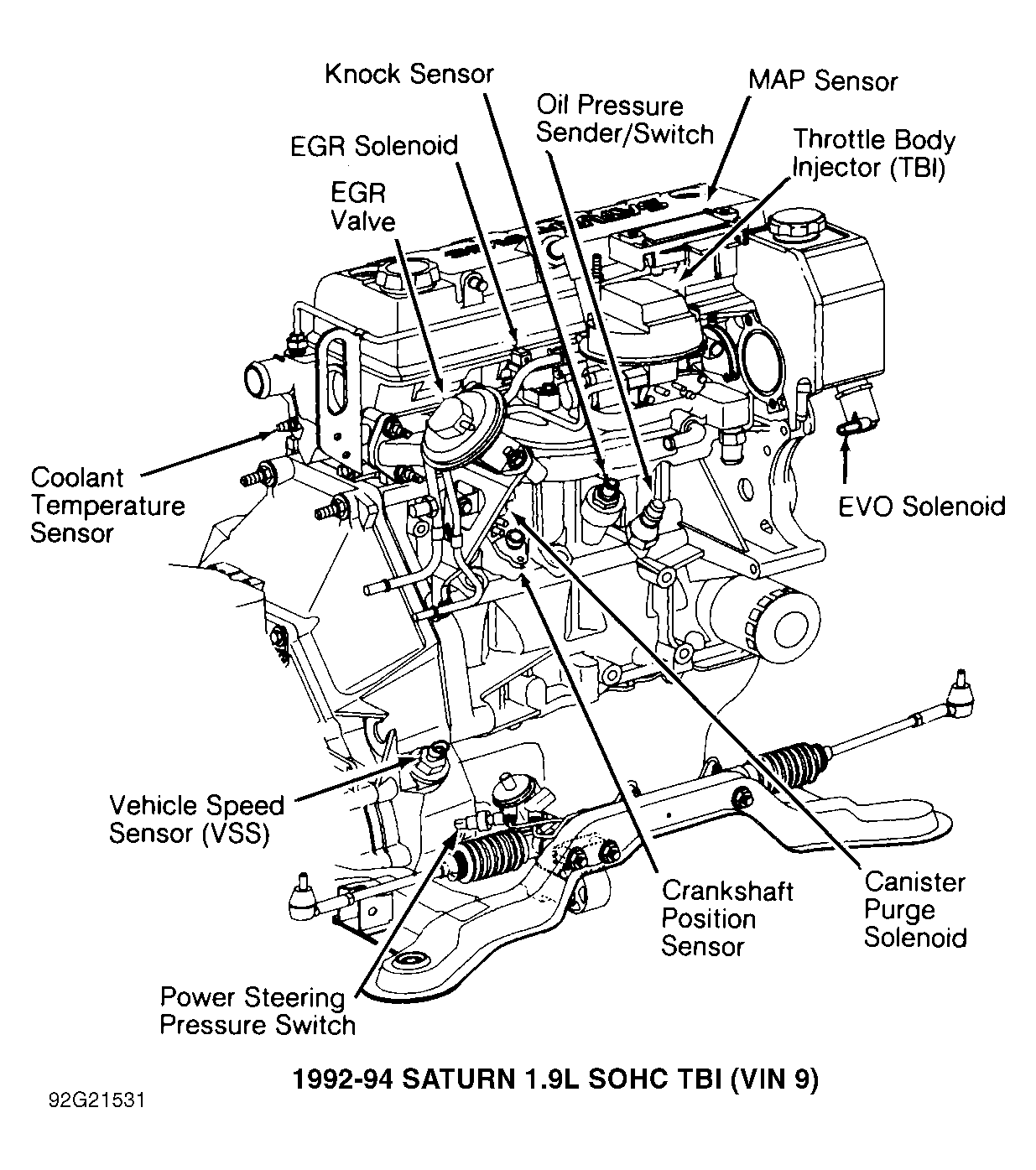

Fig 1: Component Locations (1 Of 4)

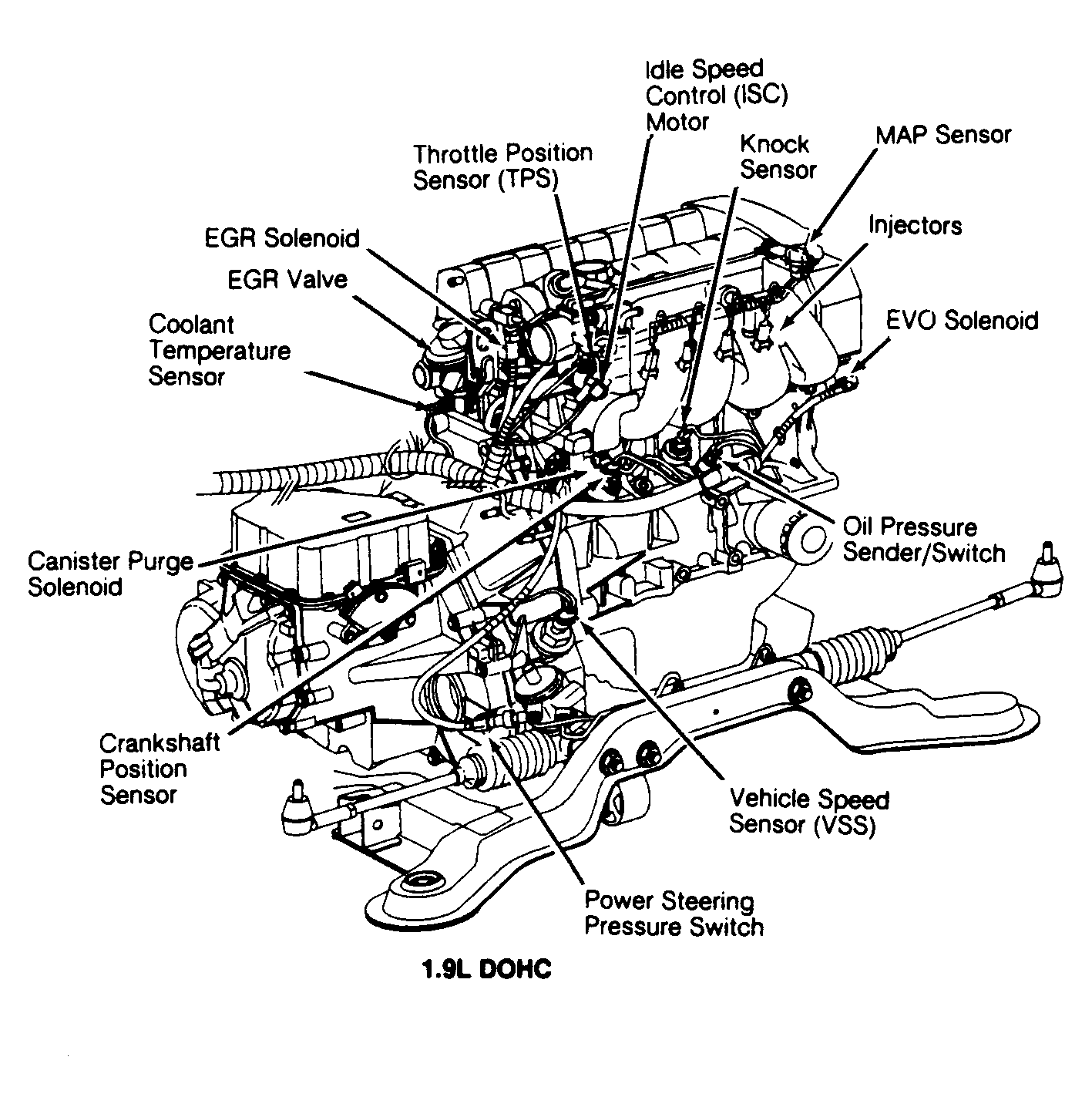

Fig 2: Component Locations (2 Of 4)

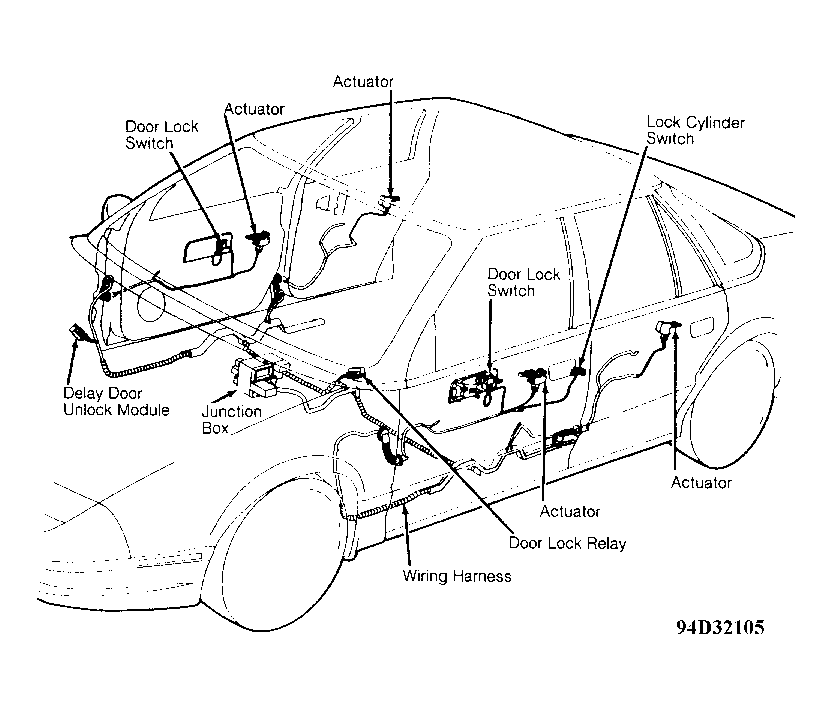

Fig 3: Component Locations (3 Of 4)

Fig 4: Component Locations (4 Of 4)
