EGR Problem

EGR valve sticking open at idle is usually accompanied by a rough idle and/or stalling. Also check for shorted or leaking injector and fuel-contaminated oil. If Code 45 is intermittent, see INTERMITTENTS in TESTS W/O CODES article in this section.

CODE 45 PCM TERMINAL & CIRCUIT WIRING IDENTIFICATION

Application	PCM Terminal	Wire Color
O2 Signal	J1D09	Purple
O2 Ground	J1D10	Tan

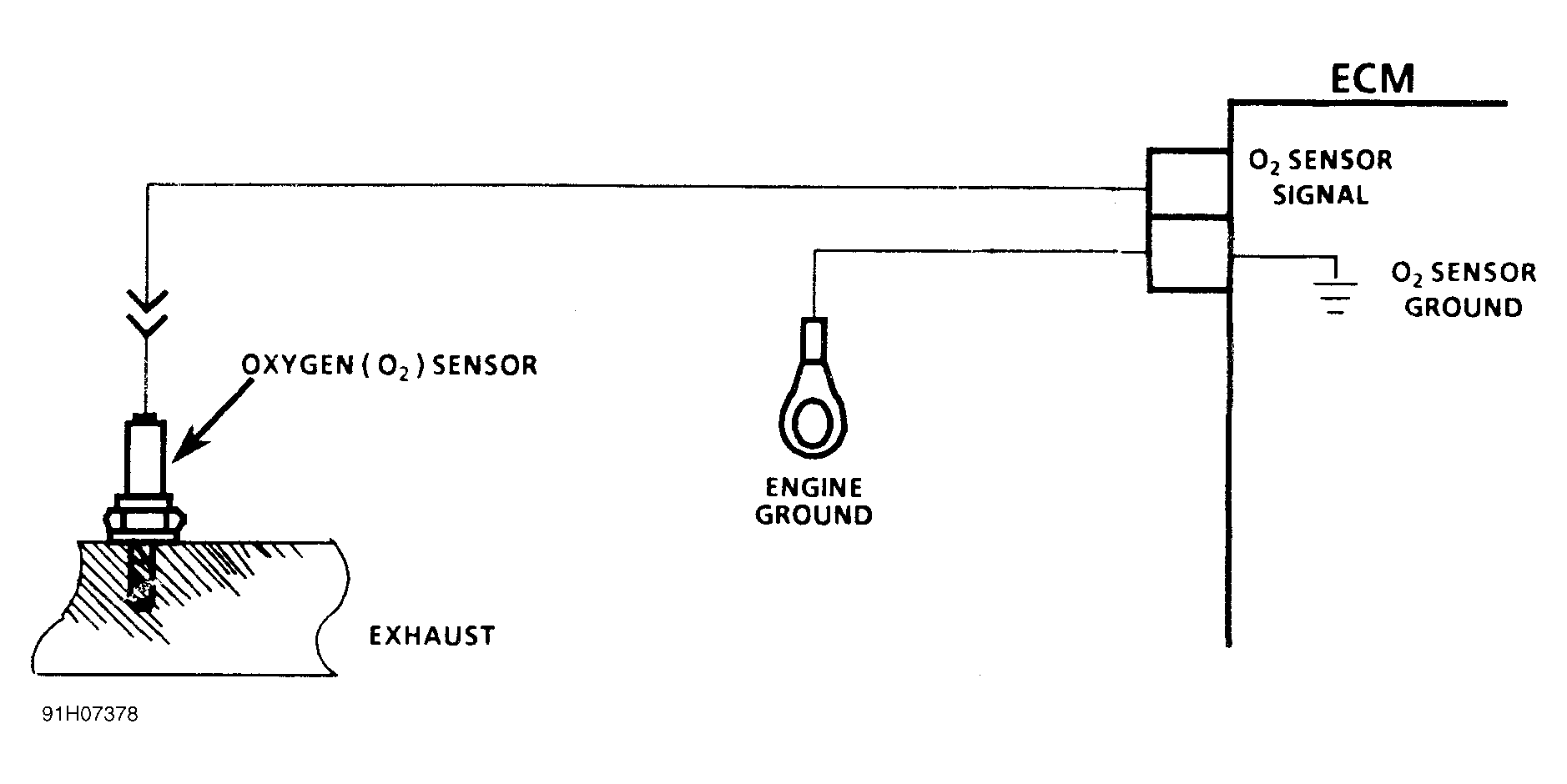

Fig 1: Code 45 Schematic (Saturn) Rich Exhaust Indication

Fig 2: Code 45 Flow Chart (Saturn) Rich Exhaust Indication
