Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Chime Module | In passenger compartment fuse/relay block. |

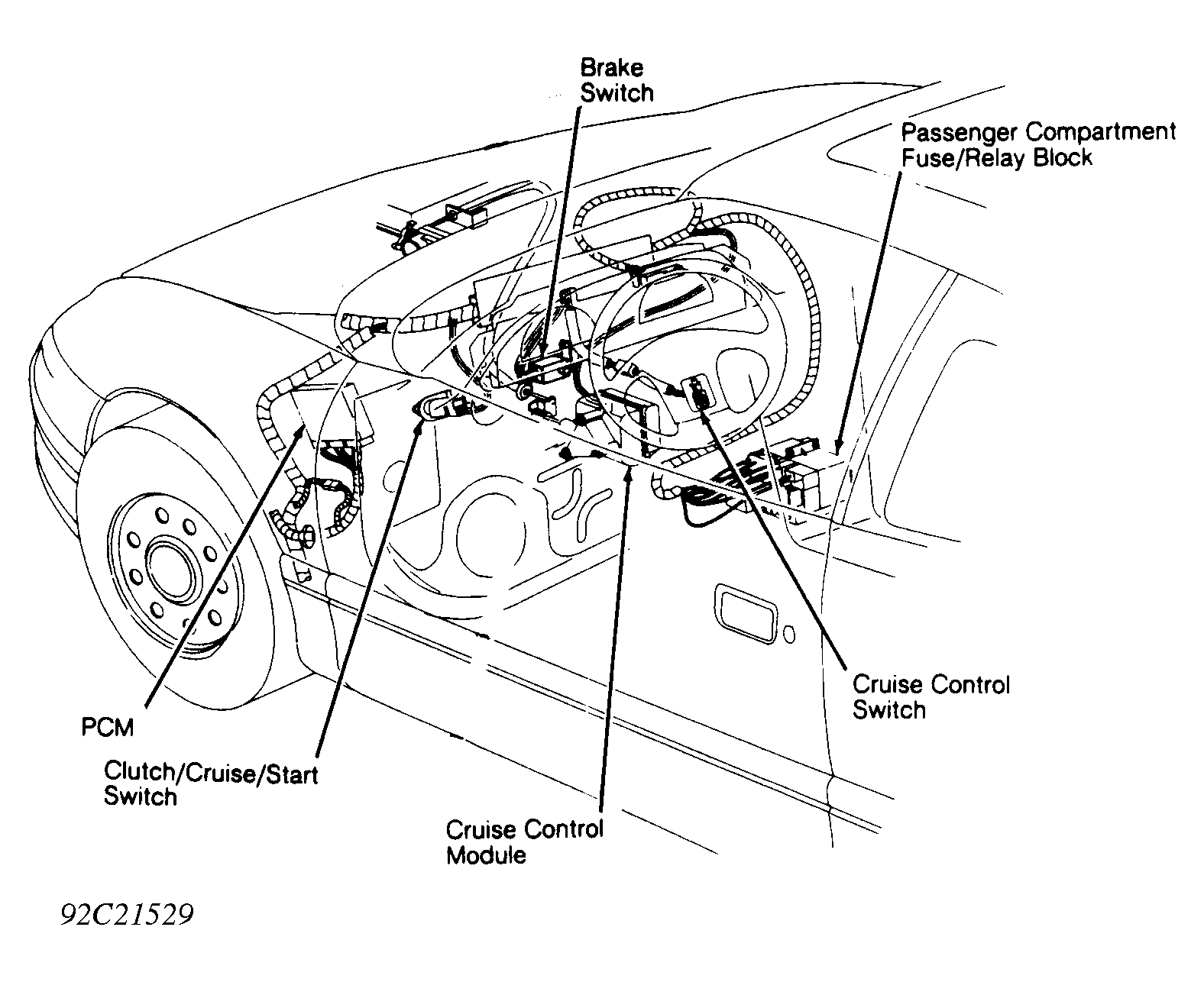

| Cruise Control Module | Under left side of dash, on right of steering column support. See Figure . |
| Daytime Running Lights (DRL) Module | In passenger compartment fuse/relay block. |
| Diagnostic Energy Reserve Module (DERM) | Behind left side of dash. |
| DIS Module | On top left rear of engine. |
| Headlight Door Module | On left front of engine compartment. |
| Powertrain Ctrl Module (PCM) | Behind left side of dash. See Figure . |
