Pin Voltage Charts

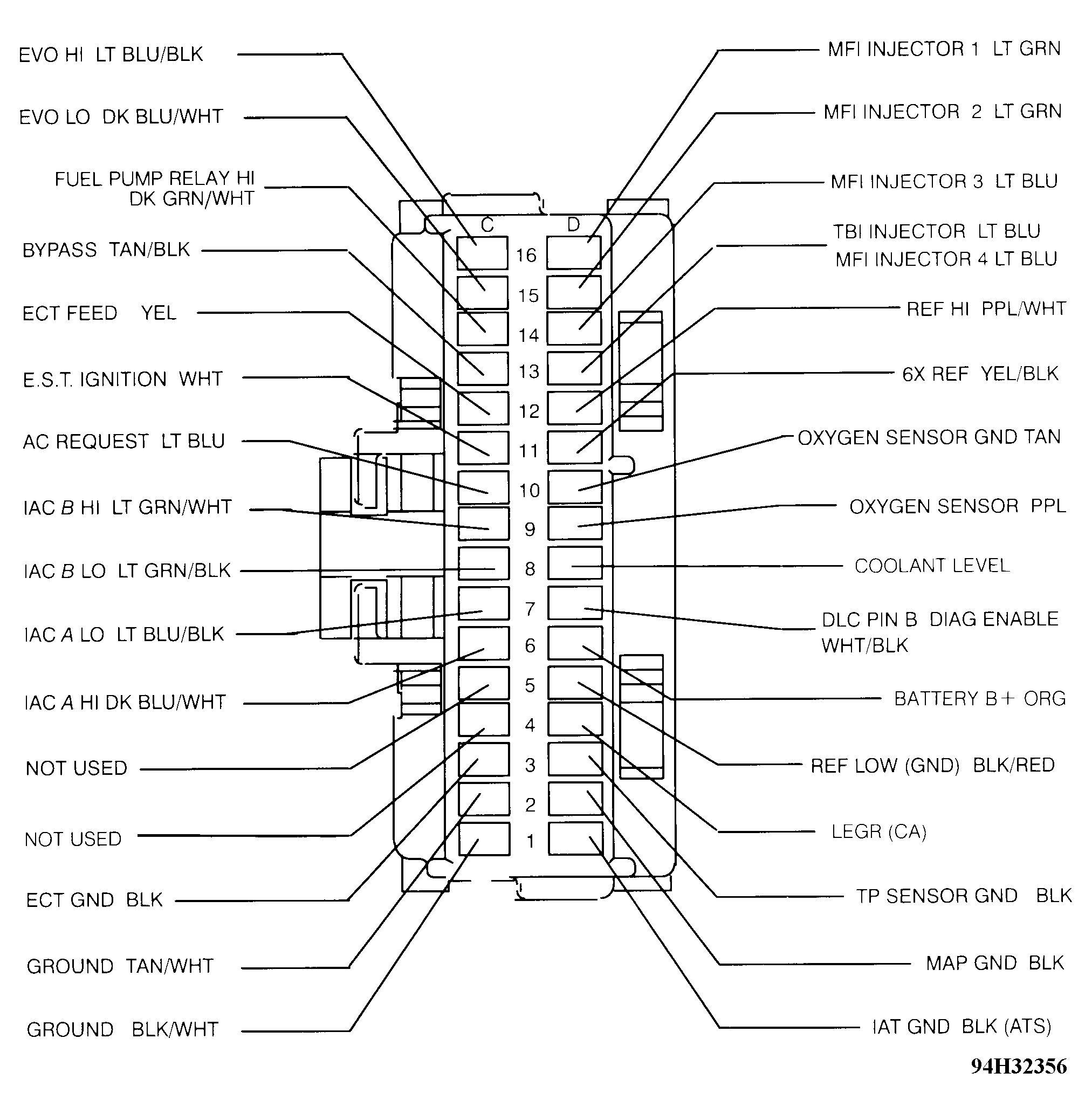

Fig 1: PCM Connector (J1) Terminal ID (VINS 7 & 9)
G94H32356Courtesy of GENERAL MOTORS CORP.

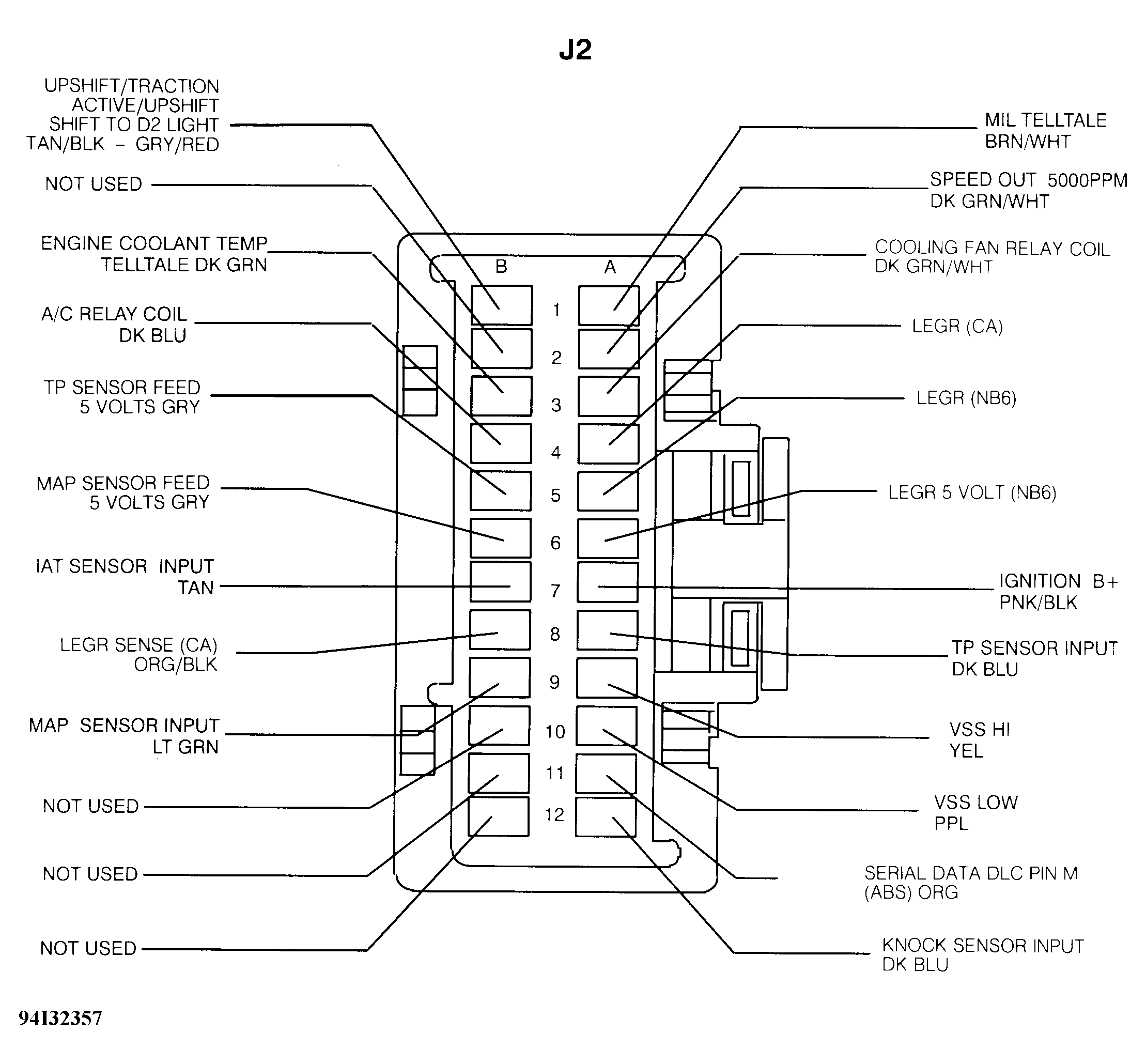

Fig 2: PCM Connector (J2) Terminal ID (VINS 7 & 9)
G94I32357Courtesy of GENERAL MOTORS CORP.
