Diagnostic Aids

Checking malfunction history on scan tester may help determine cause of intermittent code. Check tightness of all terminals and connectors.

Fig 1: Code 19 Schematic (Saturn) 6X Signal Fault

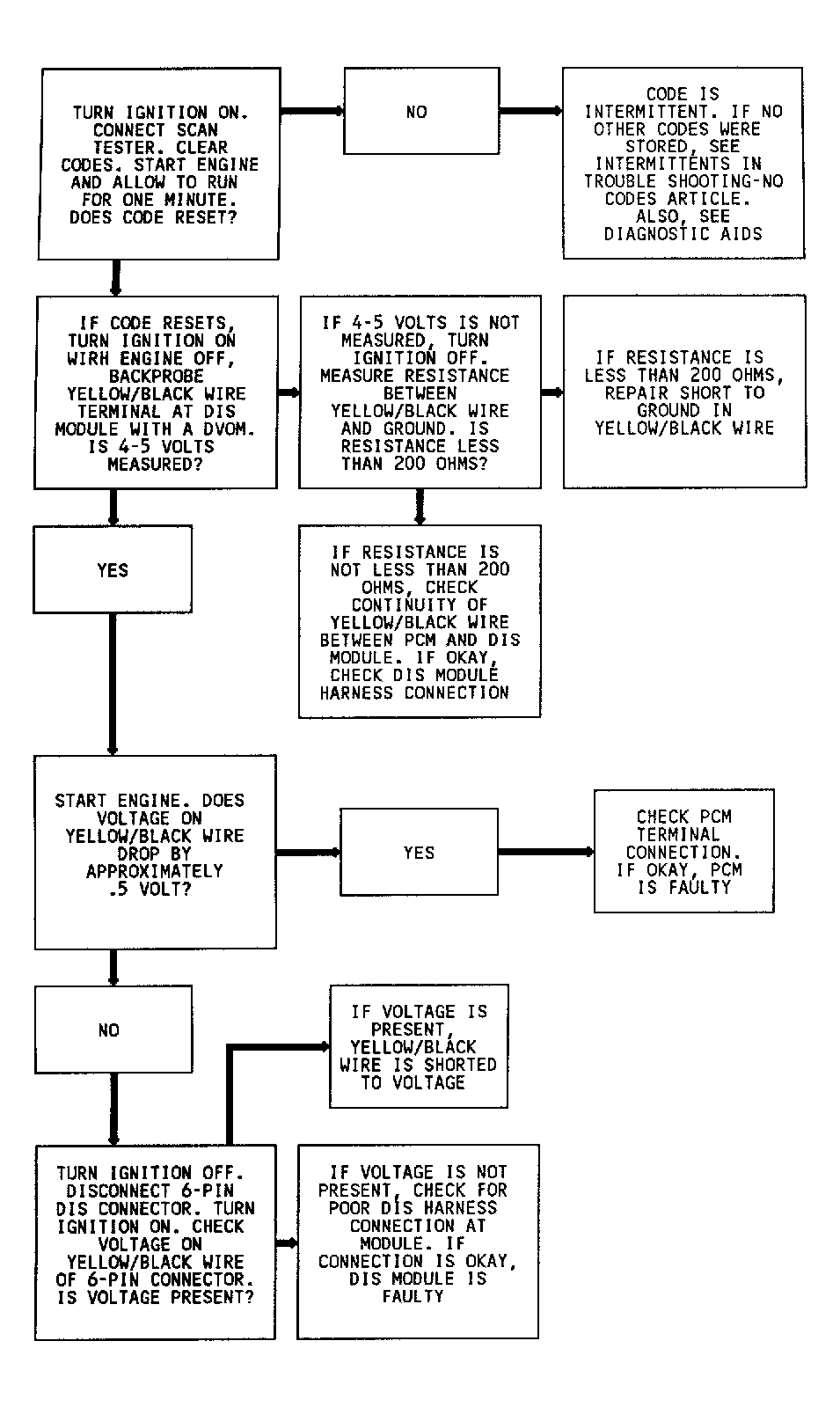

Fig 2: Code 19 Flow Chart (Saturn) 6X Signal Fault
